Equipment Description

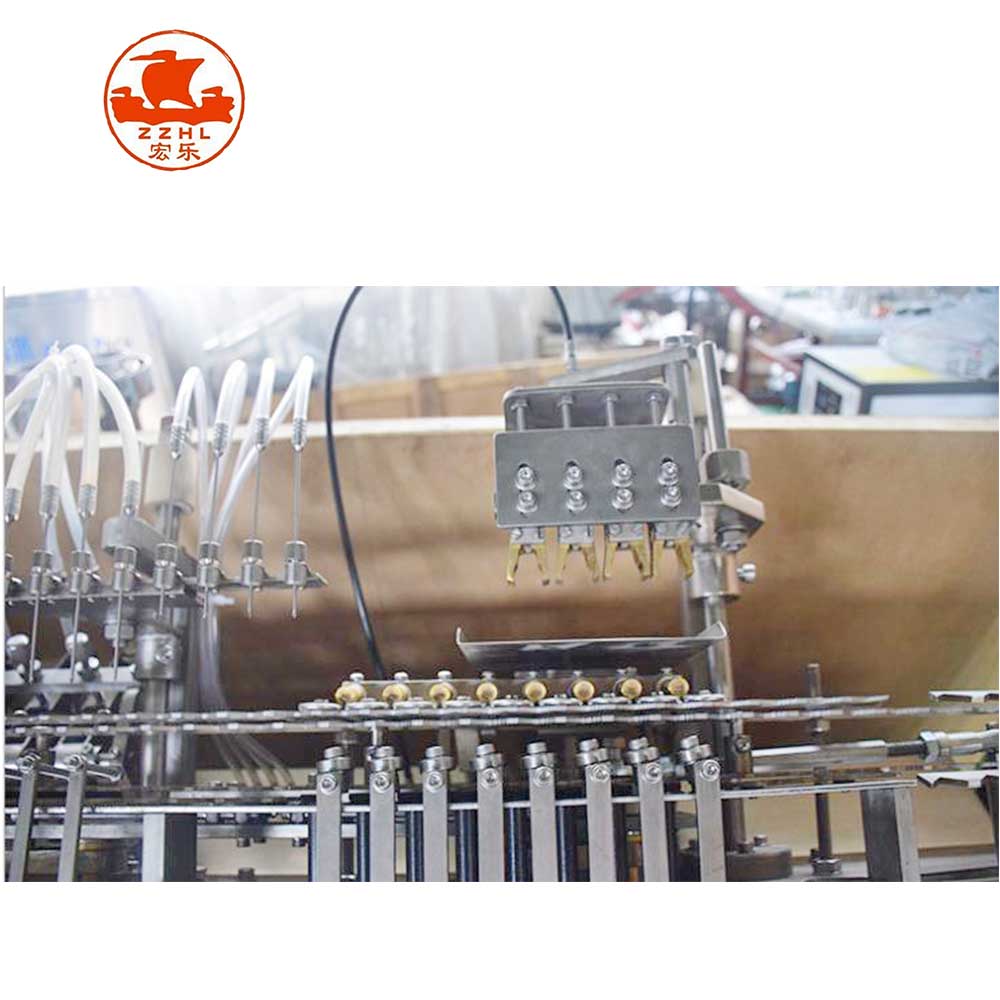

This ampoule filling and wire-drawing machine is suitable for filling and sealing of ampoule in various pharmaceutical factories. The machine has simple structure and convenient adjustment.This machine is a six-station step-type drive system, each time with 4 bottles as a group, into each point, respectively, to complete the separation of the bottle feeding, before filling nitrogen, filling medicine, nitrogen preheating after filling, wire drawing sealing and other procedures.
PARAMETER
| Filling range | 1-20ml |
| Noodle | 2/4/6/8 |
| Voltage | 380V/220V |
| Weight | 450kg |
| Size | 2000*850*1500（mm） |
| Power | 0.55kw |
| Speed | 100-160pcs/min |
| Gas consumption | 3-4m³/h |
| Air pressure | 0.08-0.1Mpa |
| Fuel | Oxygen 1m³/h |
