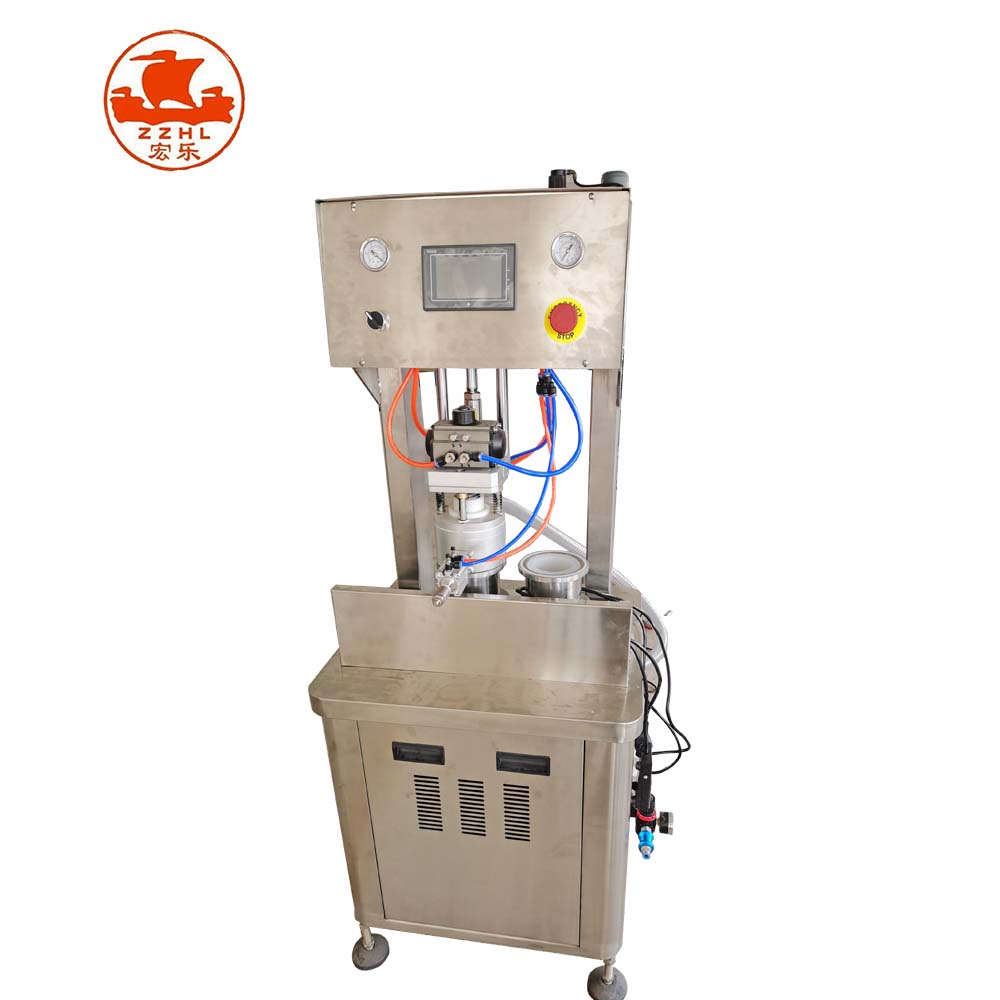

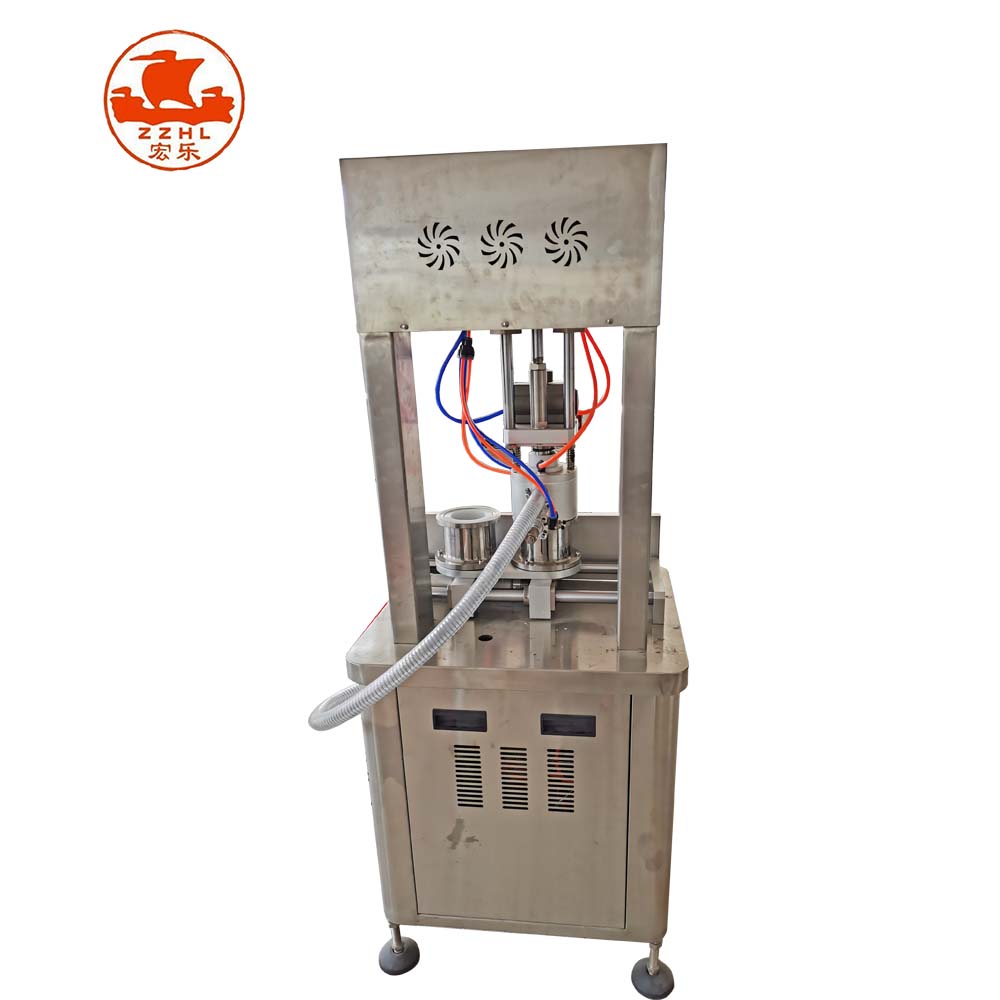

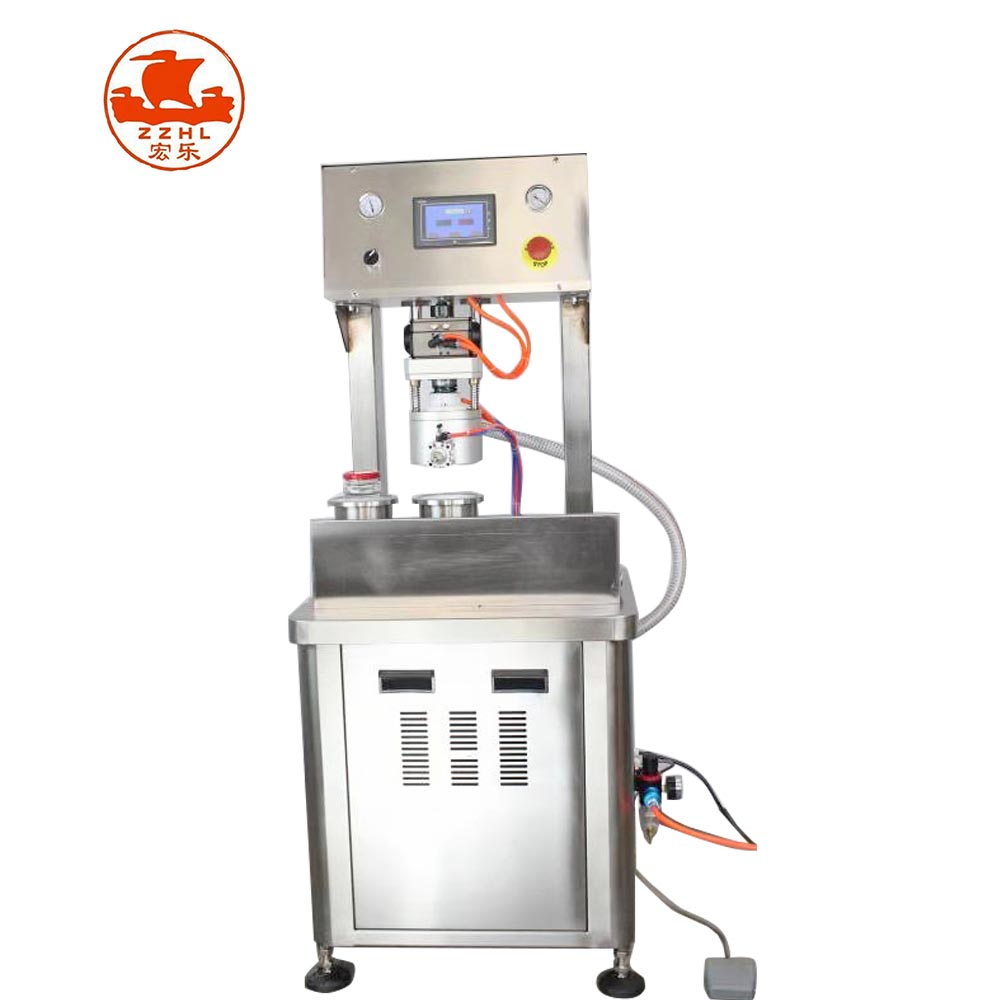

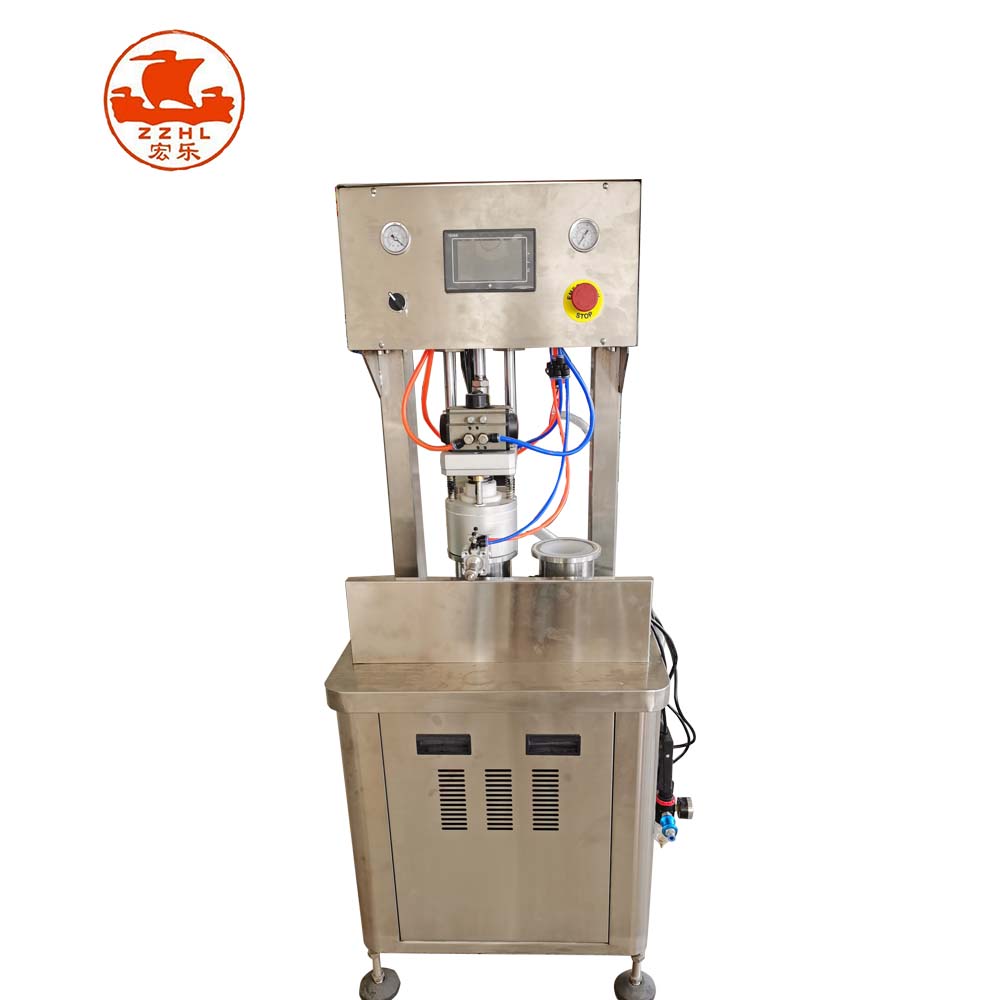

Equipment Description
This capping machine uses a vacuum pump to vacuum, available high vacuum degree, capping torque and vacuum level can be set on demand compatible with a variety of different shapes and sizes of bottles for capping, strong compatibility and easy to adjust. The main pneumatic and electrical components are from world famous brands, stable and reliable performance. Widely used in glass bottles with tinplate caps vacuum capping for the food, canned food, beverages, condiments, health care products and other industries.
PARAMETER
| Model | HLGV-20 | HLGV-40 |
| Voltage | AC220V,50/60HZ | AC220V,50/60HZ |
| Power | 750W | 0.55KW |
| Required Air Compressor | 0.4-0.6Mpa / ≥1.5kw 65L | 0.4-0.6Mpa |
| Suitable cap diameter | 45-80mm (customized according to the sample) | 45-80mm (customized according to the sample) |
| Bottle Diameter | 40-80MM | 38-68mm |
| Bottle Height | 60-130mm | 60-120mm |
| Capping Speed | 10-20bots/min | 30-60bots/min |
| Machine Size | 600*520*1400mm | 750*700*1300mm |
| Machine Weight | 80kg | 130kg |
| Packing size weight wooden case | 700*600*1520 85KG | 800*750*1520 200KG |
Related Products
-
Semi-Automatic Tinplate Can Sealing Machine
-
Adopting plastic stepper guide chain which is more strong on both side, to keep bottle come in the center place to help workers to settle difficult when they put bottles on assembly line, can solely work and can work connect with assembly line.

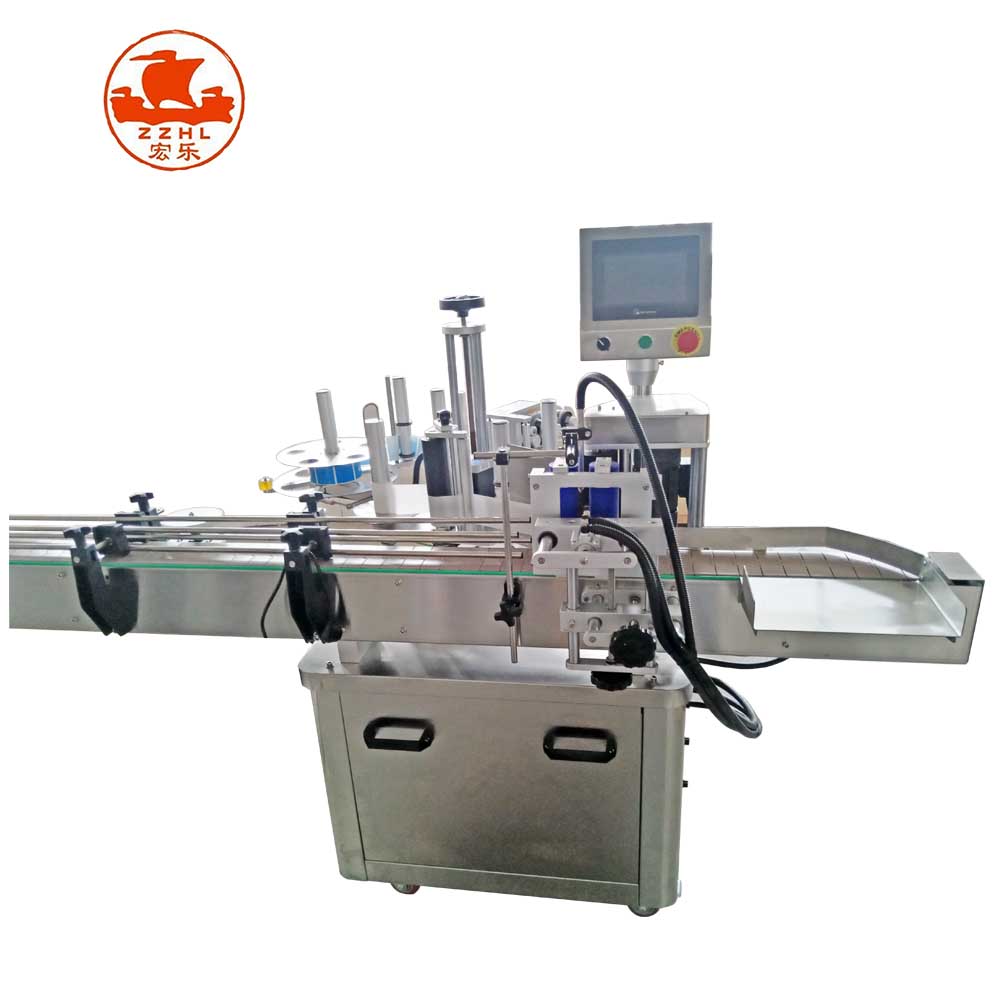

Automatic Round Bottle Labeling Machine (Linear Type)
-
