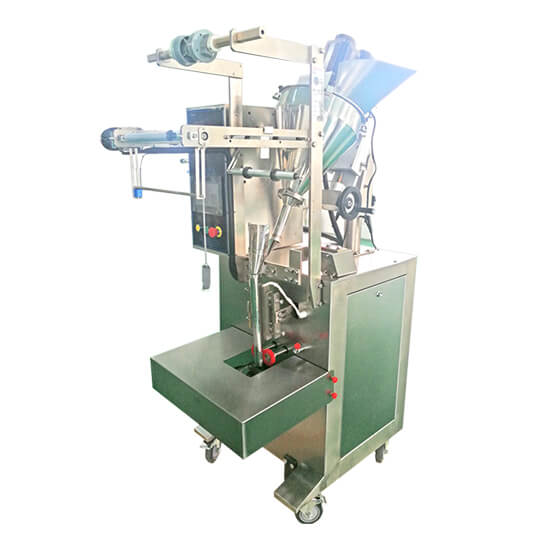

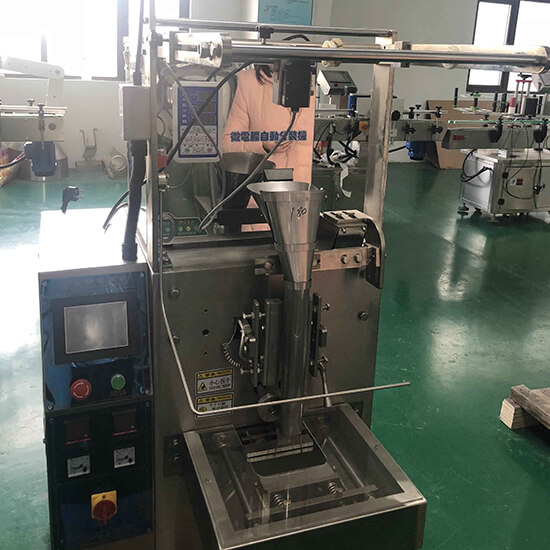

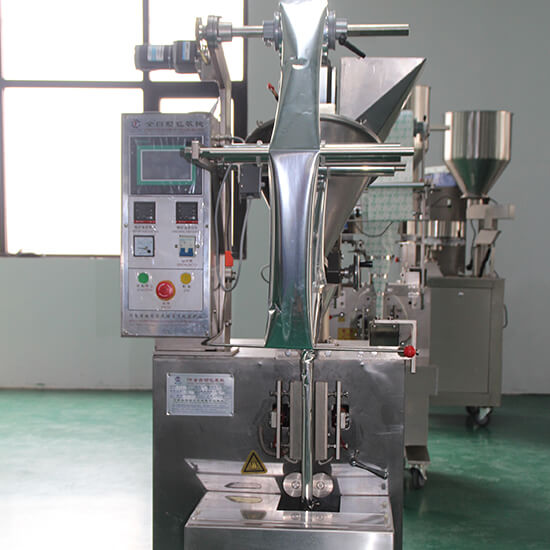

This machine is equipped with a dual-CPU microcomputer control system, a 5-inch LCD display in Chinese or English, a humanized operation interface, automatic cursor detection and tracking, and simpler operation. Equipped with a high-precision stepping motor to ensure the accuracy of the cutting position of each packaging bag.
Performance:
Adopt the straight screw to advance the feeding method to prevent the packaging weight from being directly adjusted during the packaging process. The adjustment process does not need to be stopped, which effectively improves work efficiency. It can be equipped with a coding machine, a flailing knife, a fillet, aeration, exhaust and dust collection devices.
Uses: This machine is suitable for automatic measurement and packaging of powders such as milk powder, coffee, soy milk powder, sesame paste, lotus root powder, dyeing powder, seasoning powder, and medicinal powder.
| Model | HL-DXDF-280 | HL-DXDF-350 |
| Measurement range | 1-50g | 100g-500g |
| Filling speed | 0-50Times/min | 0-40Times/min |
| Filling way | Inclined push spiral | Horizontal sliding screw |
| Bag making size | L:40-160 W:40-120mm | L:80-250 W:60-150mm |
| Packing style | Three edges, four edges, back seals | Back seal |
| Power supply | 220v 50HZ 1.1KW | 220v 50HZ 2.3KW |
| Machine size | 730*1000*1700 | 1000*950*1800 |
-
L type inline filling machine is a new and high technology filling equipment which consists of micro computer (PLC), programmable control, photoelectric sensing and pneumatic execution.
Full Automatic Liquid High Speed Filling Packing Machine Production Line
-
This type of paste filling machine adopts photoelectric automatic control system, unique piston filling form, which can not only continuous filling, but also free filling machine.
Chili Sauce Letinous Edodes Sauce Automatic Filling Packing Machine Production Line
-
Adopted piston quantitative, mechanical and electrical, pneumatic in one, electrical and pneumatic components used well-known brands.
Fully Automatic Paste Liquid Filling Processing Line
-
This machine is the intelligent packaging for the development of granular materials and irregular materials. Using pneumatic gate feed or belt feeding mode, advanced frequency conversion technology.
5-50KG Granule Filling Packing Machine
