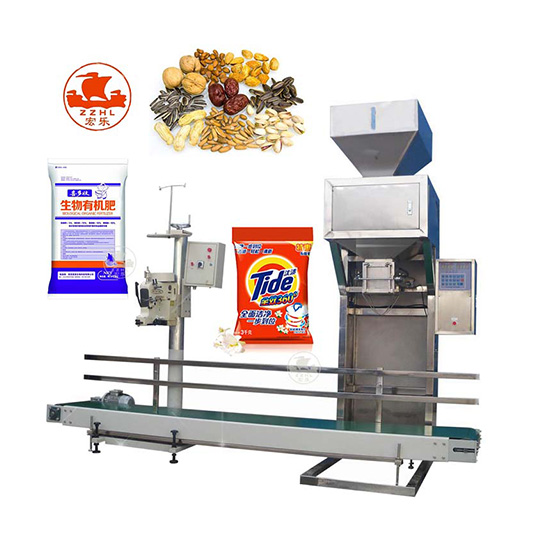

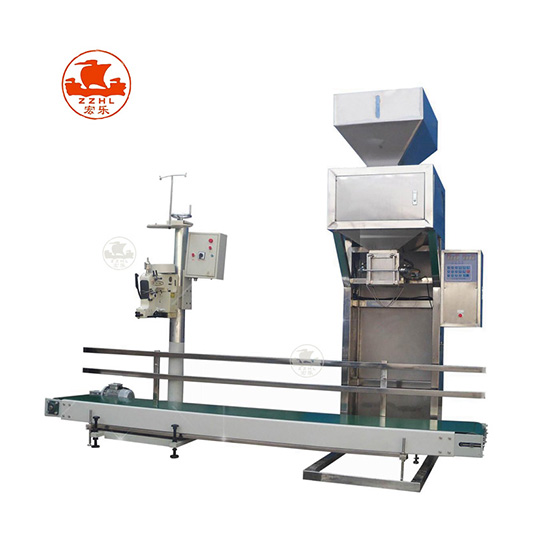

1. Semi-automatic granule packing machine
Introduction :
This machine is the intelligent packaging for the development of granular materials and irregular materials. Using pneumatic gate feed or belt feeding mode, advanced frequency conversion technology.
The packing unit is mainly composed of four parts, which are automatic weighing packer, conveying device, sewing device and feeding machine. It has the characteristics of reasonable structure, beautiful shape, convenient operation and accurate weighing.
The machine is mainly suitable for the quantitative packaging of granular, granular powder, strip, block, tobacco and other materials. Such as: quantitative packing fertilizer, feed, Chinese herbal medicine, Chinese medicine granules, premix, washing powder, snack food, candy, melon seeds, peanuts, nuts, roasted seeds and nuts, salt, MSG, chicken essence, seeds, grain, metal and other granular materials.
The main technical parameters :
| Packing | 5-50kg |
| Maximum weighing weight | 100kg |
| Packaging speed | 4-6 bags / min |
| Packaging accuracy | ± 0.2% |
| Air pressure | 0.4-0 .6 Mpa |
| Air consumption | 0.5Nm3 / mi |
| Weighing method | Sensor |
| Frequency / voltage | 50Hz / 60Hz / 220V / 380V |
| Equipped with power | 2.2kw |
| Dimensions | Length 800 × width 900 × height 1900 (or 2400 with silo height) (mm) |
Equipment Features :
1. Use no bucket bag weighing measurement, gate discharge, more energy saving and energy saving.
2. The use of all stainless steel production process, PLC control technology, simple operation.
3. Independent suspension sensor, signal transmission stability, to ensure weighing precision.
4. The host operating interface uses an electronic screen or a liquid crystal touch screen, which is convenient for customers to choose.
5. host, transmission belt, sewing machine, controller network, ensure humanized operation to reduce labor intensity.
6. The weighing control system is designed according to the requirements of IP54 (dustproof and waterproof).

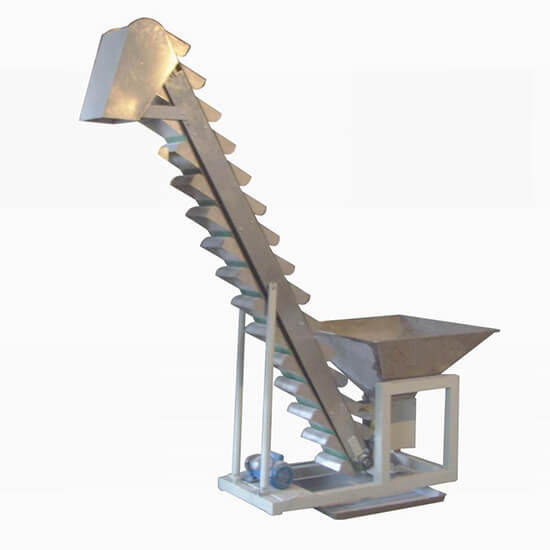

2.Feeder
FOB price : 1,990usd/set, (MOQ: 3set). 1,890usd/set, (MOQ: 4 set). 1,790usd/set, (MOQ: 5set).
Introduction :
The machine is suitable for granular, strip, block, irregular material feeding, and material contact parts of stainless steel, easy to clean.
Technical Parameters:
| Loading efficiency | 3-6 t / h |
| Lifting height | 1.6-1.9 m (adjustable, special height to be ordered) |
| Latter dimension | length × width × height (2600 × 800 × 2300) |
| Power. Power | AC 380V 2000W |

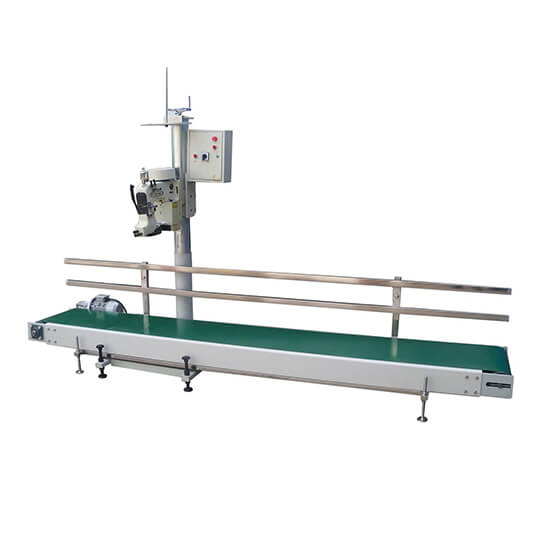

3. Conveyor belt + sewing machine
Introduction :
Belt conveyor, with a single needle double-line sewing machine or automatic folding edge sewing machine, beautiful stitch, solid, no leakage, suitable for long-distance transport. Widely used in chemical, food, feed, ports and other industries of particles, powder materials, high-speed conveyor bag.
Technical Parameters :
| Speed | 6-12 m / min 300-600 bags / hour |
| Sewing bag height | 400-900 mm |
| Sewing bag weight | 10-50 kg |
| With the motor | Conveyor 370 tile sewing machine 370 W Power 0.74KW |
| Overall dimensions | 2000X1500X650 (mm) |
| Total weight | 160kg |
4. Check-weigher
-
This machine is equipped with a dual-CPU microcomputer control system, a 5-inch LCD display in Chinese or English, a humanized operation interface, automatic cursor detection and tracking, and simpler operation. Equipped with a high-precision stepping motor to ensure the accuracy of the cutting position of each packaging bag.
280 350 Model Automatic Powder Packing Machine
-
PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
520 Type Automatic Powder Packing Machine
-
Applicable scope for packaging milk powder, sesame paste, strong bone powder, condiments, Ganoderma lucidum powder, granules and other items.
HL-GDF Full Automatic Powder Filling and Packing Machine
-
Suitable for quantitative filling of various bottles, cans and bags,Photoelectric induction blanking, or optional foot switch blanking,Feedback scale and indexing value can be adjusted to meet various accuracy requirements.
Semi-automatic Powder Packaging Machine
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
