1．Filling and Capping Machine
2．Aluminum Foil Sealing Machine
3．Automatic Labeling Machine

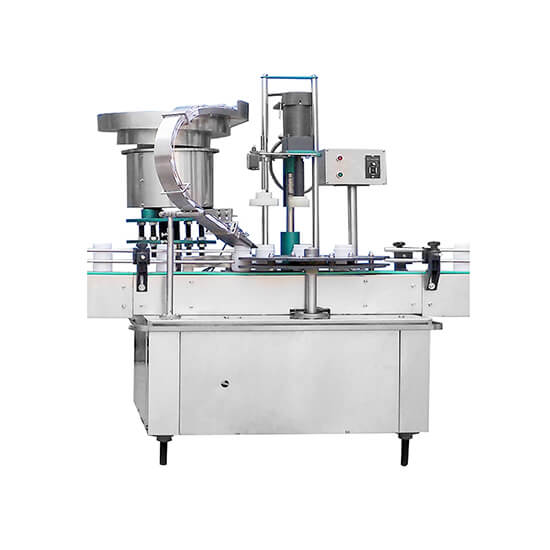

1. Filling and Capping Machine
This machine adopts frequency control for rotary motion, the bottle in the rotary tangential force in order to enter the conveyor belt, supporting and packaging production lines, save labor, improve efficiency, applicable range of 50-1000ml container glass bottles, plastic bottles, plastic bottle, etc.
The main parts of this machine are made of high quality stainless steel and meet the requirements of GMP.

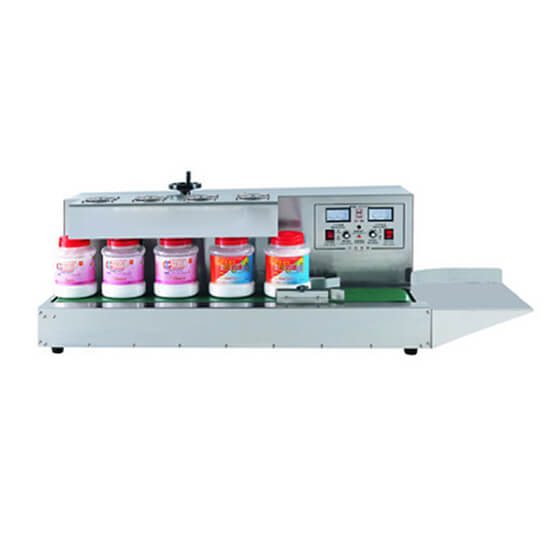

2. Aluminum Foil Sealing Machine
Parameters :
| Voltage | 220V |
| Power | 1300W |
| Sealing Diameter | 15-45mm, 30-60mm |
| Sealing Height | 20-180mm |
| Conveyor Belt Speed | 0-12.5m/min |
| Sealing Speed | 0-200 bottles |
| Cooling Mode | Air Cooling |
| Machine Weight | 33kg |
| Machine Size | 805*310*330mm |
| Packing Size | 930*505*465mm |
Technical Features :
1．Sealing speed, suitable for mass production;
2．All stainless steel mold shell, beautiful and generous;
3．Easy to use, good sealing quality, continuous work.

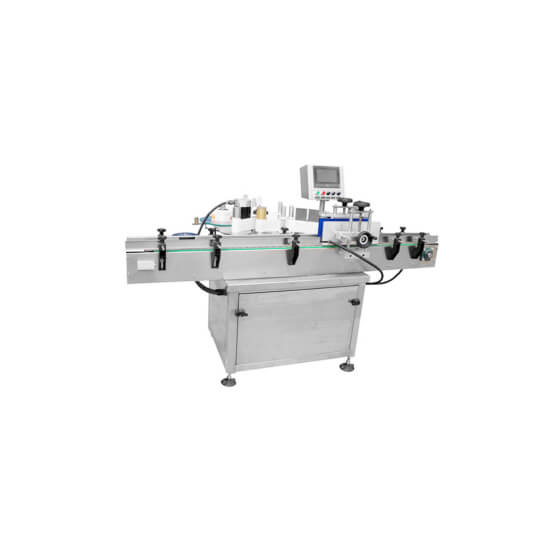

3. Automatic Labeling Machine
Parameters :
| Labeling Speed | 100-250 bottles/min |
| Labeling Precision | ±1mm |
| Circular Bottle Diameter | φ20mm—φ100mm |
| Labeling Height | φ20mm—φ140mm |
| Labeling Lenght | ≤340mm |
| External Dia of Paper Roll | ≤φ300mm |
| Inside Dia of Paper Roll | ≥ φ76mm |
| Valtage | 220V |
| Power | 200W |
| Size | 2000*1050*1300mm |
Description :
Vertical labeling machine adopts advanced rolling on labeling, using computer control fiber, synchronous tracking, a bid by the stepper motor or servo motor control, automatic detection and automatic container and label size, location and other advanced features, to ensure accurate labeling, automatic synchronization.
The host adopts microcomputer mode control, touch type large LCD panel, display and storage of ten sets of memory devices, is a modern advanced mechanical and electrical equipment. When the single machine is in use, the optional delivery (receiving) material tray can also be directly connected with the production line, and the utility model has excellent and reliable working performance. It can also be equipped with printer to print labels synchronously.
Self-adhesive labeling machine is easy to clean, not moldy, after labeling beautiful, firm, will not fall off their own, high production efficiency. This series of models is made of 304 stainless steel and advanced aluminum alloy treated by anodic treatment. It conforms to GMP standard. It is suitable for automatic labeling of containers in medicine, daily chemicals, food and other industries.
-
This machine is equipped with a dual-CPU microcomputer control system, a 5-inch LCD display in Chinese or English, a humanized operation interface, automatic cursor detection and tracking, and simpler operation. Equipped with a high-precision stepping motor to ensure the accuracy of the cutting position of each packaging bag.
280 350 Model Automatic Powder Packing Machine
-
PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
520 Type Automatic Powder Packing Machine
-
Applicable scope for packaging milk powder, sesame paste, strong bone powder, condiments, Ganoderma lucidum powder, granules and other items.
HL-GDF Full Automatic Powder Filling and Packing Machine
-
Suitable for quantitative filling of various bottles, cans and bags,Photoelectric induction blanking, or optional foot switch blanking,Feedback scale and indexing value can be adjusted to meet various accuracy requirements.
Semi-automatic Powder Packaging Machine
