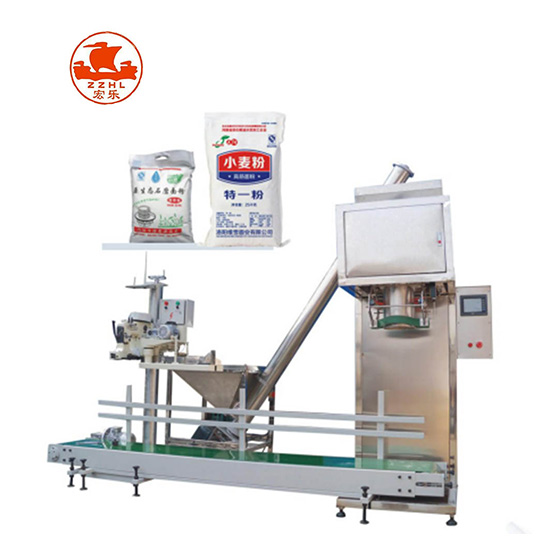

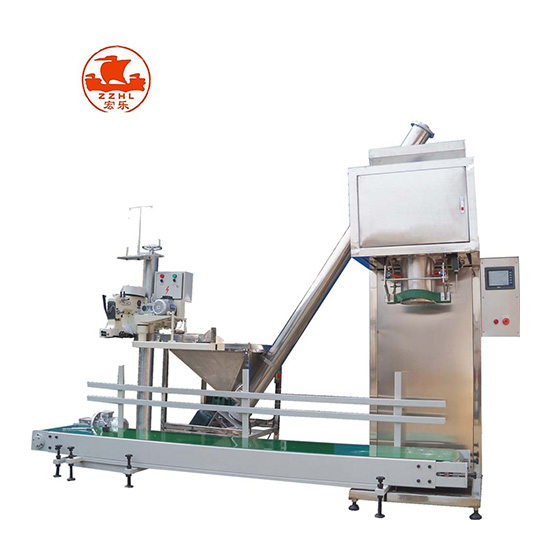

This series of packaging machine is a new generation of intelligent electronic weighing packaging machine developed by our company.It is characterized by reasonable structure, smooth operation, convenient operation and high weighing accuracy.The main engine adopts fast and slow feeding, and the speed is faster.Advanced digital frequency conversion technology, sampling and processing technology, anti-interference technology, and automatic error compensation and correction, suitable for quantitative packaging of powder, granular and flake materials.The products are widely used in food additives, chemical raw drugs, flour, milk powder, starch, sugar, chicken essence, monosodium glutamate, seeds, rice additives, fertilizer, feed, plastic powder, new building materials and other industries.
Characteristic:
Adopt all stainless steel production process electronic screen,PLC control technology, simple operation and independent suspension sensor, stable signal transmission, ensure the weight accuracy of infrared sensor, two-speed feeding system, high weight accuracy, the warehouse is equipped with broken arch motor, the material will be loose in the spiral transmission,The annular bag clamping mechanism makes the bag and the feeding mouth sealed tightly, which can reduce dust overflow and fit for automatic control of feeding machine, conveyor and sealing machine, and improve efficiency and reduce labor intensity.
| Equipment code | HL-DGS-10F | HL-DGS-50F | HL-2DGS-50F |
| Measuring range | 2-10kg | 5-50kg | 5-50kg |
| Packing accuracy | ±0.2-0.5% | ||
| Filling speed | 3-10 bag/min | 3-8 bag/min | 6-16 bag/min |
| Filling way | Single spiral | Single spiral | Double helix |
| Air source pressure | 0.6Mpa/1m³ | ||
| Power supply/power | 380w 50HZ 1.7KW | 380w 50HZ 2.5KW | 380w 50HZ 4.7KW |
| Size(mm） | 600*1400*2200 | 950*1500*2500 | 1900*1500*2800 |
-
This machine is equipped with a dual-CPU microcomputer control system, a 5-inch LCD display in Chinese or English, a humanized operation interface, automatic cursor detection and tracking, and simpler operation. Equipped with a high-precision stepping motor to ensure the accuracy of the cutting position of each packaging bag.
280 350 Model Automatic Powder Packing Machine
-
PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
520 Type Automatic Powder Packing Machine
-
Applicable scope for packaging milk powder, sesame paste, strong bone powder, condiments, Ganoderma lucidum powder, granules and other items.
HL-GDF Full Automatic Powder Filling and Packing Machine
-
Suitable for quantitative filling of various bottles, cans and bags,Photoelectric induction blanking, or optional foot switch blanking,Feedback scale and indexing value can be adjusted to meet various accuracy requirements.

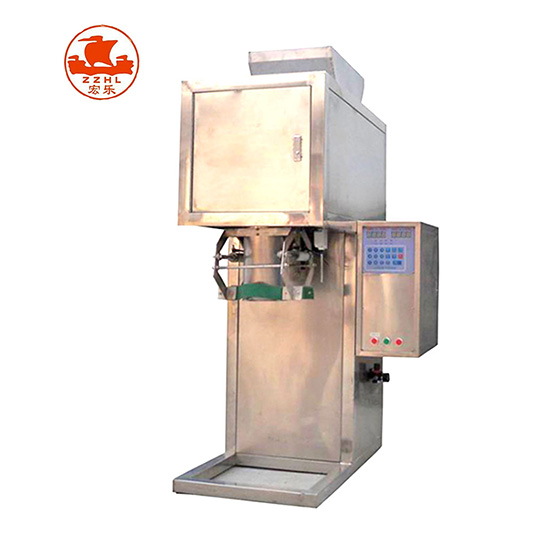

Semi-automatic Powder Packaging Machine
