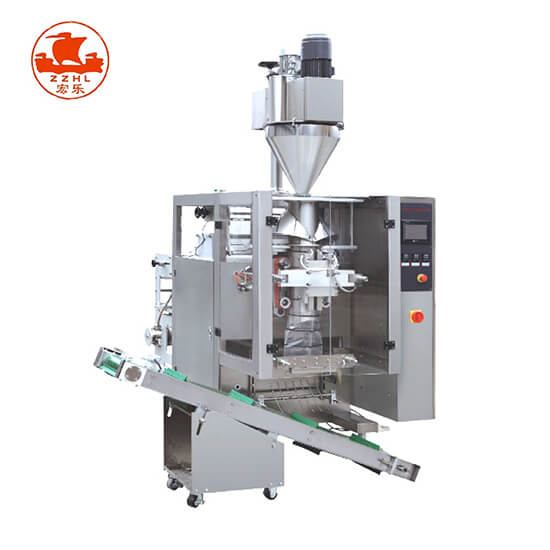

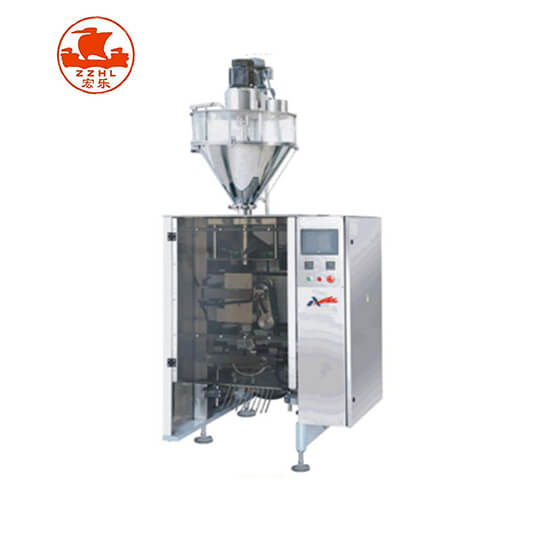

Features :
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple .
7. Close down type mechanism , defending powder into inside of machine.
Advantage :
1. The machine adopt servo motor control, screw measuring, precision ±1℅.
2. Adjustment product weight without any tools.
Application :
Suitable packing powder : milk powder , bean powder ,tea powder ,etc.
| Type | TH-520 |
| Bag length | 80-400mm(L) |
| Bag width | 80-250mm(W) |
| Max width of roll film | 520mm |
| Packing speed | 5-50bags/min |
| Measuring range | 3000ml(Max) |
| Air consumption | 0.65Mpa |
| Gas consumption | 0.4m³/min |
| Power voltage | 220VAC/50HZ |
| Power | 4Kw |
| Dimension | (L)1150×(W)1795×(H)1650mm |
| Weight | 600KG |
-
L type inline filling machine is a new and high technology filling equipment which consists of micro computer (PLC), programmable control, photoelectric sensing and pneumatic execution.
Full Automatic Liquid High Speed Filling Packing Machine Production Line
-
This type of paste filling machine adopts photoelectric automatic control system, unique piston filling form, which can not only continuous filling, but also free filling machine.
Chili Sauce Letinous Edodes Sauce Automatic Filling Packing Machine Production Line
-
Adopted piston quantitative, mechanical and electrical, pneumatic in one, electrical and pneumatic components used well-known brands.
Fully Automatic Paste Liquid Filling Processing Line
-

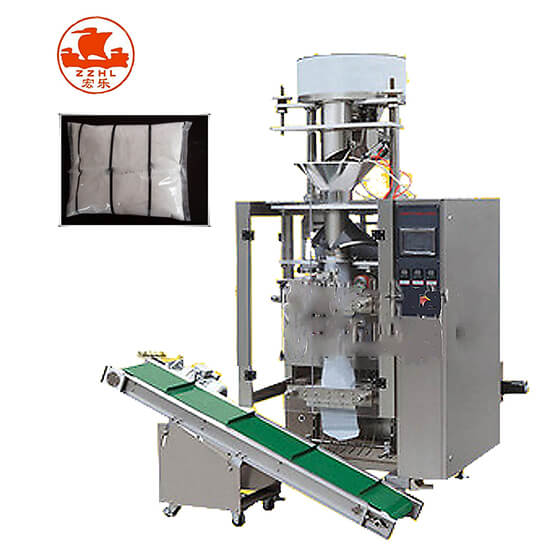

This machine is the intelligent packaging for the development of granular materials and irregular materials. Using pneumatic gate feed or belt feeding mode, advanced frequency conversion technology.
