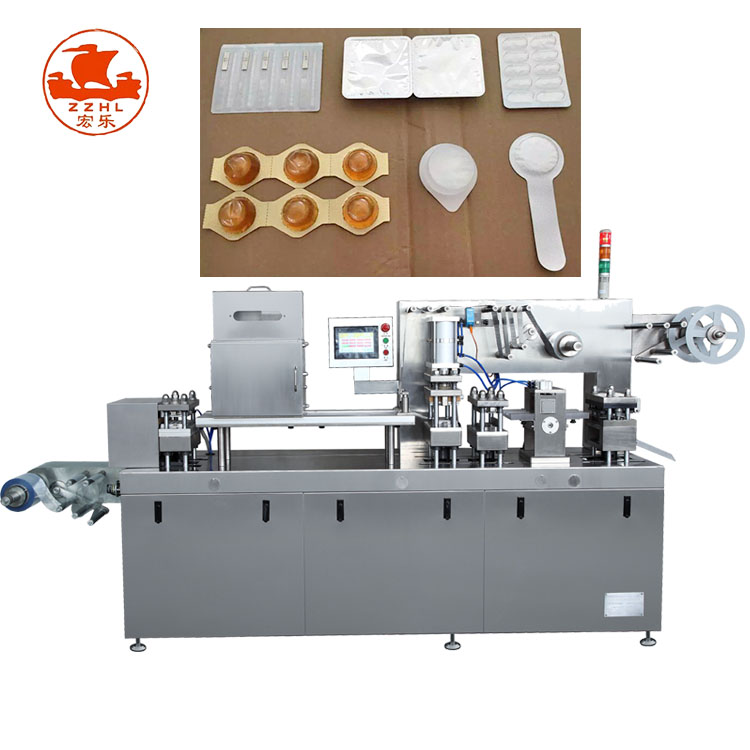

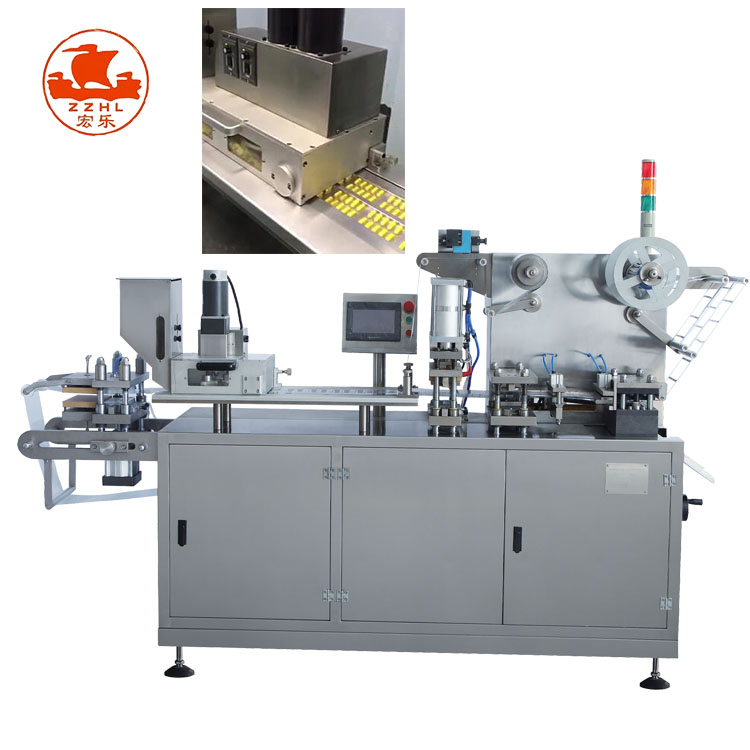

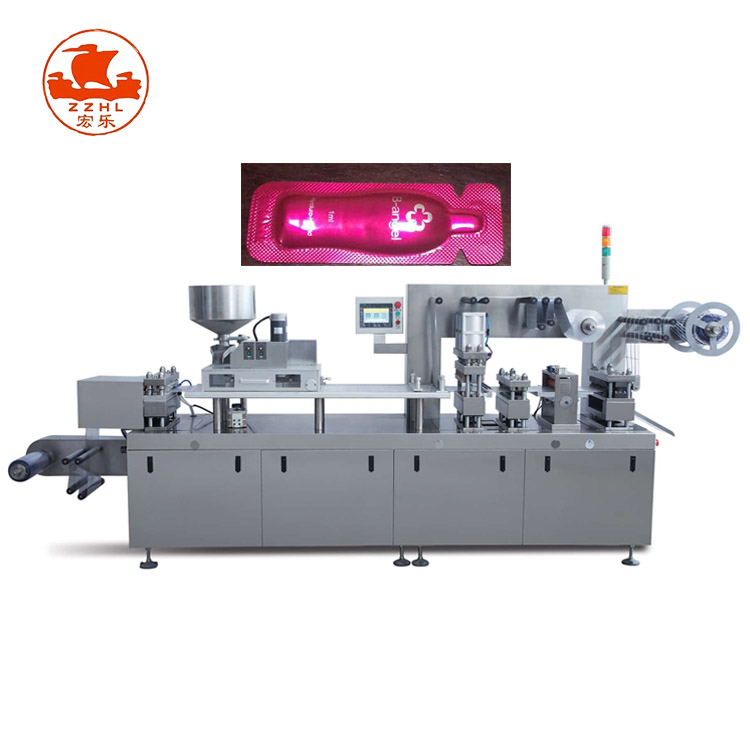

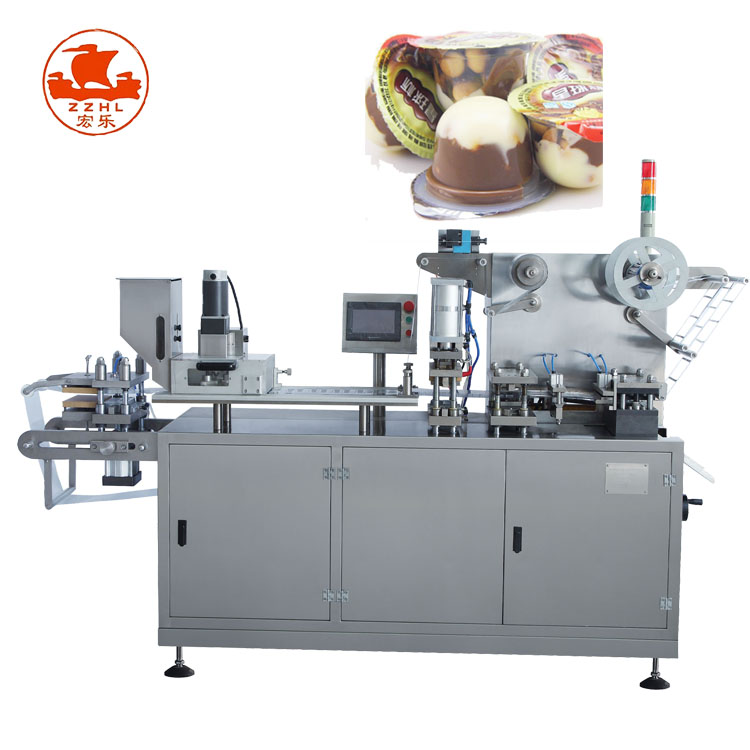

Automactic Tablet Pill Blister Packing Machine Blue Capsule Blister Packaging Machine
Equipment Description
This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute.
This machine is flat plate structure, positive pressure and convenient to operate.
It is small and the stroke Length is adjustable.
It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.
PARAMETER
| Model | HLPZ-120 |
| Punch Frequency | 10-40times/min |
| Max. Formed Depth | 16mm |
| Travel Range | 30-95 mm (adjustable) |
| Max. Formed area | 120*90mm |
| Air Pressure | 0.4-0.6Mpa |
| Total Power | 380V/220V 50Hz 3.2KW |
| Main Motor Power | 0.75Kw |
| PVC Hard Pieces | 0.15-0.5*130 (mm) |
| PTP Aluminum Foil | 0.02-0.035*130 (mm) |
| Dialyzing paper | 50-100g*130mm |
| Air pump volume flow | ≥0.2²/min |
| Heat seal power | 0.5kw |
| Up and down side heat power | 0.5+0.5kw |
| Size | 2070*650*1060 mm 560kg |
