We usually use perfume, chocolate, milk powder, food, mask, cream, lotion, cosmetics, medicines, tea, coffee, and other boxes of packaging. They also use this kind of machine

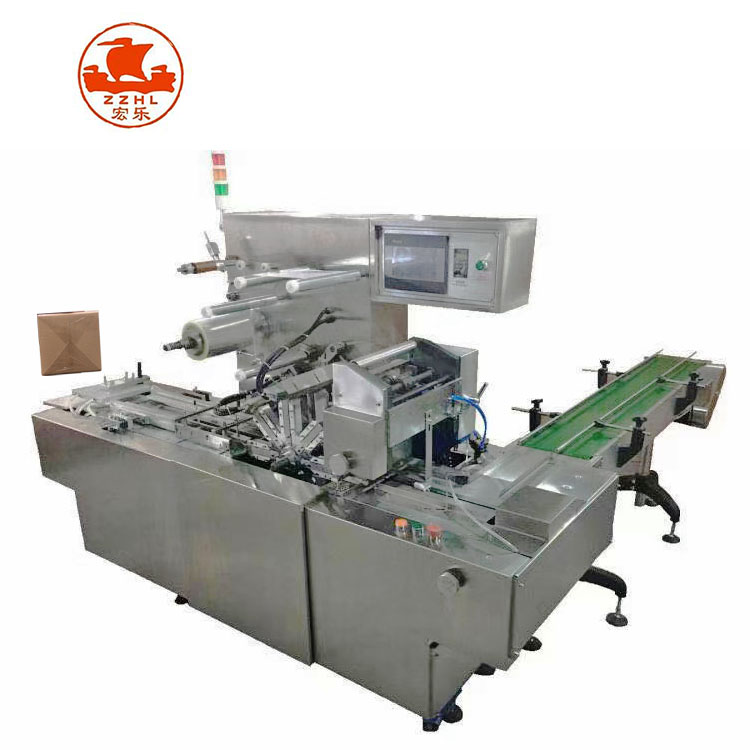

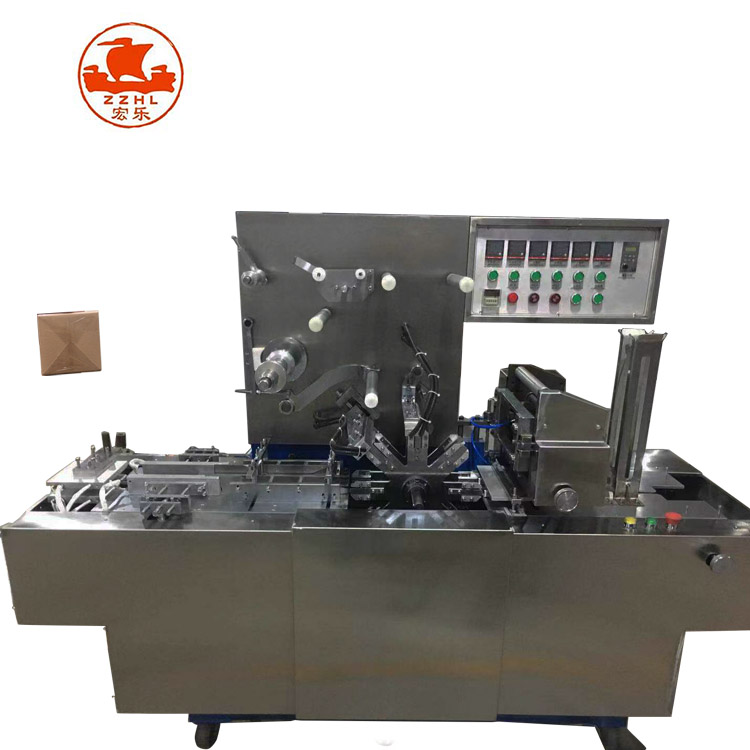

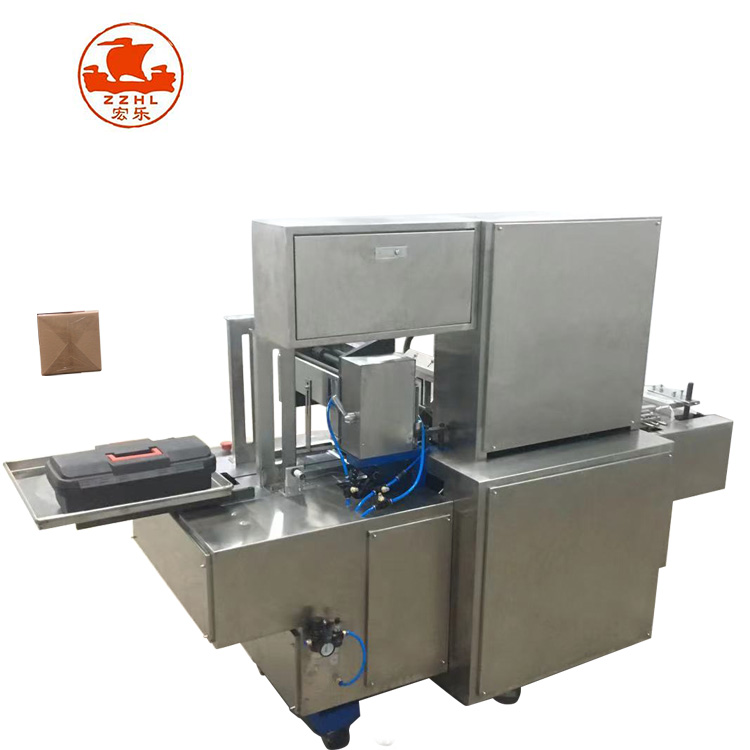

This machine is suitable for automatic film packing (with gold wire) of single-piece box-type articles in various industries. With double safety mechanism, the machine does not need to stop when running out of sync and will not damage other parts. The hand-operated device can swing the machine forward or backward, and the product can be rotated backward to clean the product more quickly when the product is stuck. No need to adjust the height of the working table on both sides of the machine when changing the mould. When the film cutting mechanism and the upper shaping lifting, only need to turn the handwheel to change its height. No need to disassemble discharge chain, discharge hopper.
|
Model |
HL-200B |
|
Voltage (V/Hz) |
AC 220/50 110/60 |
|
Motor Power (KW) |
4.5 |
|
Electric heating power |
3.2 kw |
|
Packing speed(min) |
30-90 pieces/min |
|
Packing size(mm) |
L(50~150)* W(20~100)*H(10~50) mm |
|
Temperature control range |
0-300℃ |
|
Packing material |
with anti-counterfeiting gold wire and Bopp Heat seal film |
|
Machine size |
1800*750*1500mm |
|
Weight |
450kg |
|
Maximum packing film size |
360x200(mm) |
