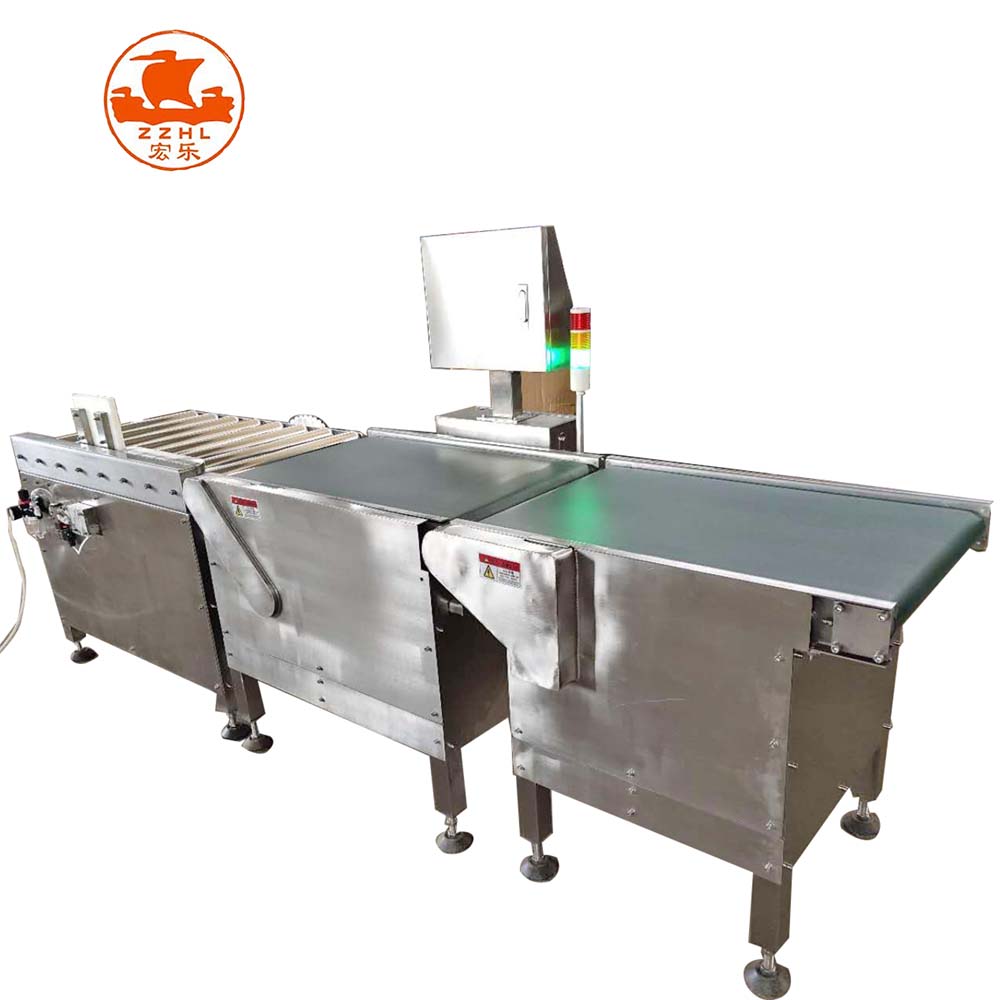

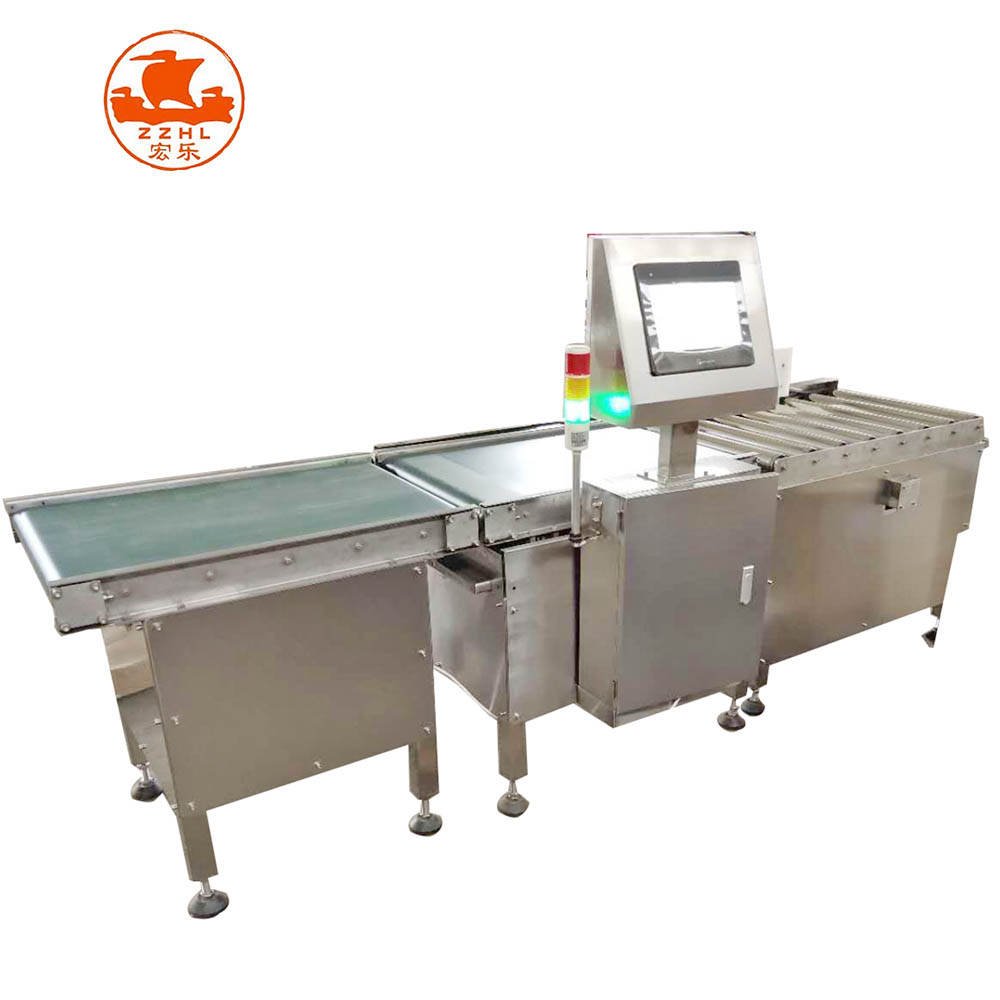

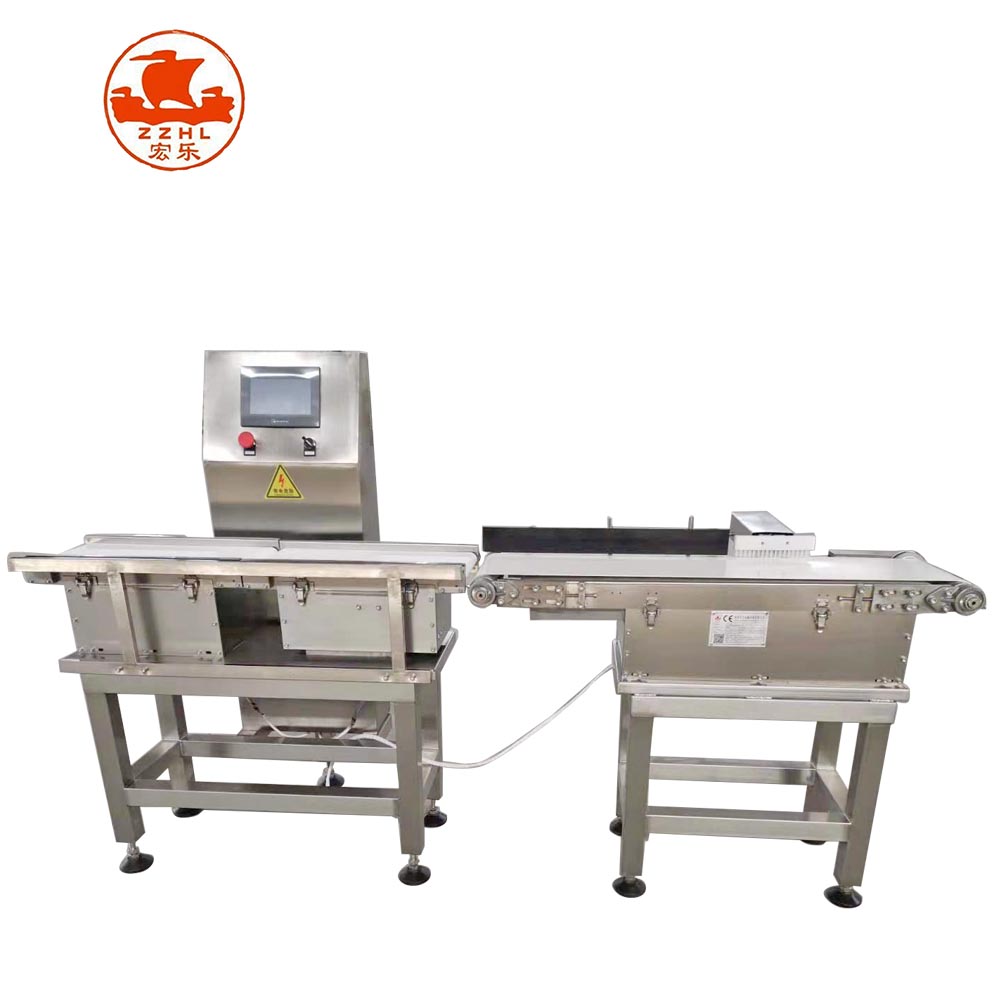

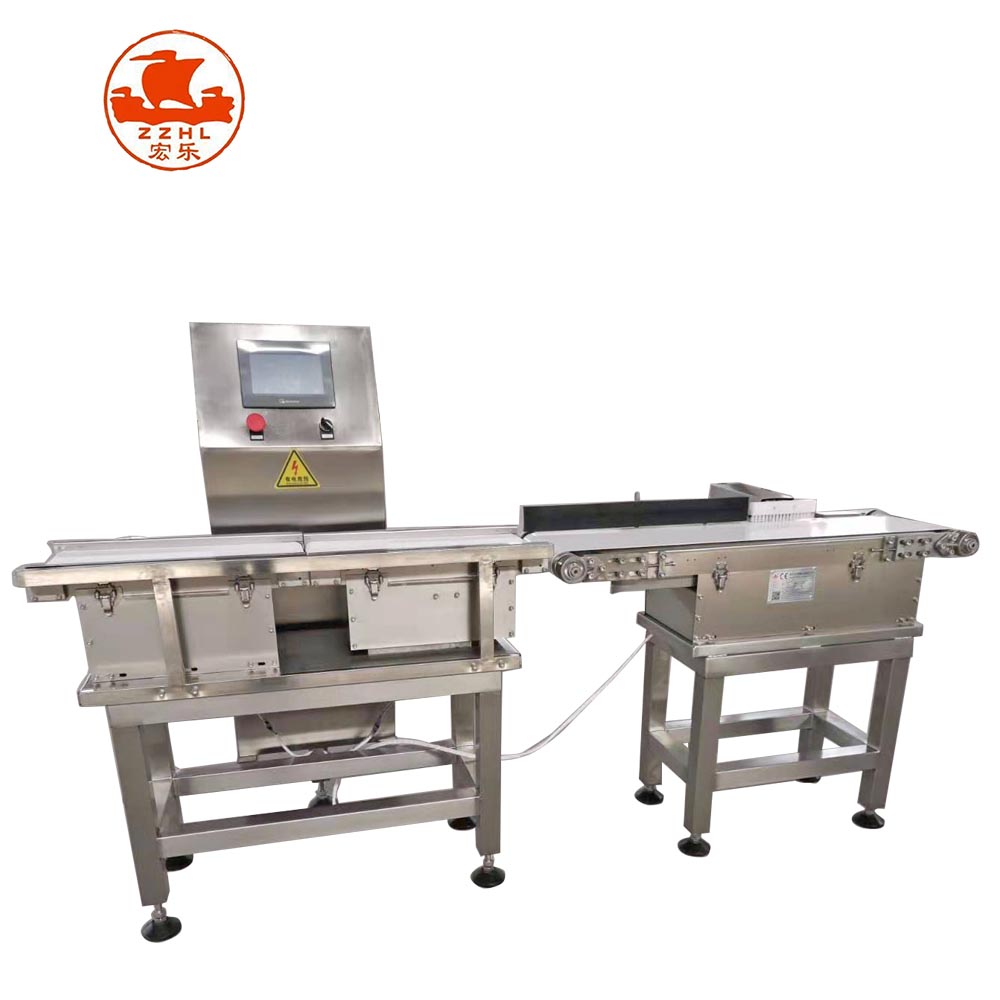

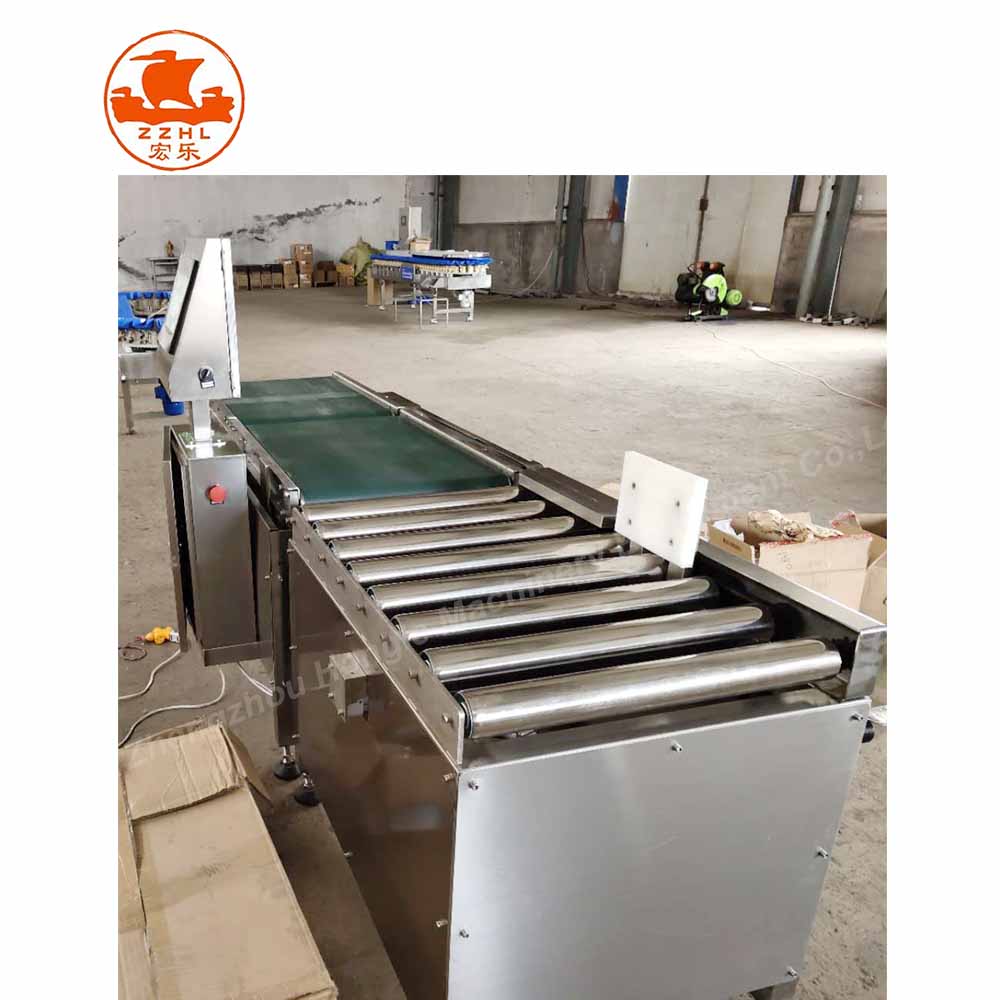

The checkweigher is designed for fully automated packaging lines,when find the overweight and ultra-light products the conveyor belt will stop and alarm, the screen will display the weight. When the substandard product removed from the product line, the belt will run automatically. Auto ejector is optional.
online mass check weigher price is suitalble.
Features：
1. Large size color LCD touch screen interface, the operation is simple and direct display.
2. Enhanced 304 stainless steel frame, GMP and HACCP standards.
3. Simple mechanical structure, can quickly remove cleaning maintenance.
4. Can store 200 kinds of product parameters, the convenient user use.
5. Automatic zero tracking system, guarantee the stability of detection.
6. Built-in temperature and noise compensation system, ensure the data is reliable.
7. The dynamic weight compensation technology, ensure the data to be more effective
8. Parameters set password protection, only management operation.
9. Strong self diagnosis function, effectively improve the efficiency of the operator to deal with failure.
It is suitable for many industries such as electronics, pharmacy, food, beverage, daily chemical, light industry, agricultural and sideline products. It is especially suitable for the pharmaceutical industry to detect whether tablets or tablets are small or large; whether powder-packed drugs are missing or multiple bags; whether the weight of liquid drugs meets the standard requirements; whether the drug accessories are missing (such as instructions, desiccants, etc.).
| Model | HL-150N | HL-150H | HL-150 | HL-220 | HL-300 | HL-450 | HL-500 |
| Max.capacity | 100g | 100g | 500g | 1500g | 3kg | 30kg | 50kg |
| Weighing range | 5g-100g | 5g-100g | 5g-500g | 5g-1500g | 5g-3kg | 50g-30kg | 50g-50kg |
| Min.accuracy | ±0.2g | ±0.2g | ±0.2g | ±0.5g | ±0.5g | ±5g | ±20g |
| Min.scale interval | 0.1g | 0.1g | 0.1g | 0.1g | 0.1g | 1g | 5g |
| Max.speed | 300piece/min | 220piece/min | 150piece/min | 120piece/min | 100piece/min | 35piece/min | 25piece/min |
| Item memory | 200 Products | ||||||
| Alarm mode | Automatically rejected/Buzzer,Alarm lamp,Alarm stop Run | ||||||
| Rejector(optional) | Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(can be custom) | ||||||
| Power Source | 380/220/110V 50/60Hz | ||||||
| Measurement | SUS304 | ||||||
| Remark | 1.Optimum accuracy depends on the product condition,Max.speed depends on the product size and conveyor speed. 2.Above machine specifications for the standard specifications, size and other special requirements, all can be customized. | ||||||
-
This machine is suitable for pack instant noodle , biscuit , bread , pie , snack , medicine , ice cream , chocolate , mooncake , candy , frozen food , tissue , adhesive tape , soap , commodity , hardware parts , cutlery , inflight meal , etc.
