Equipment Description

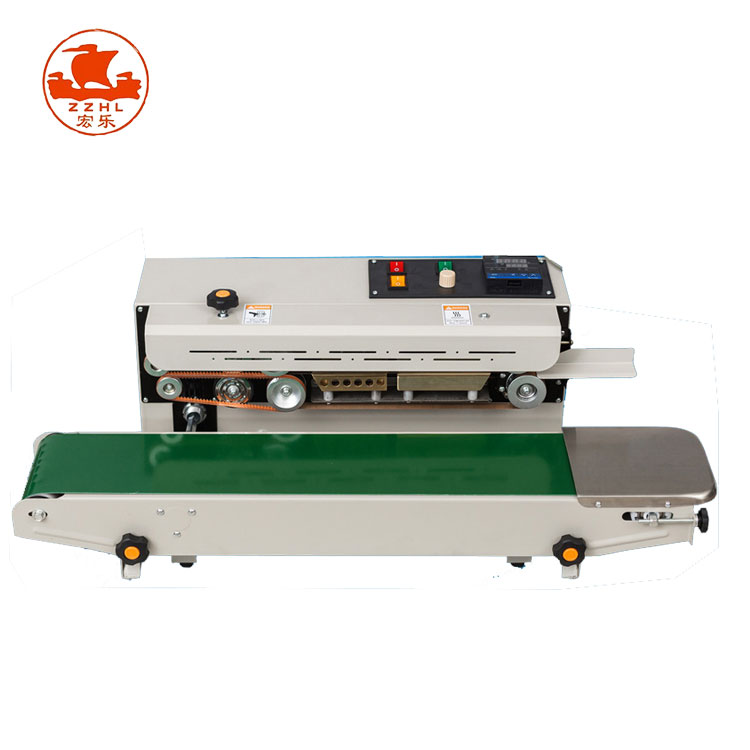

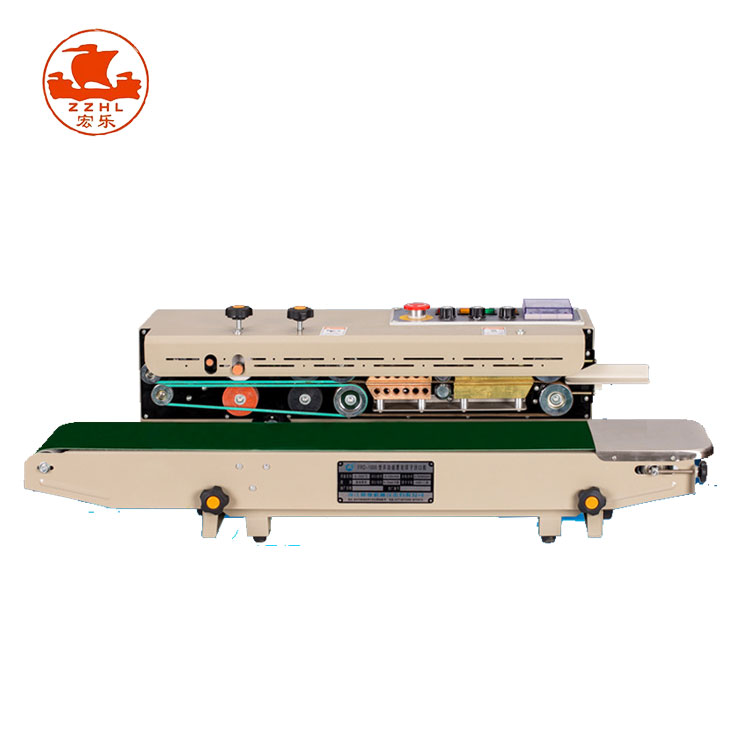

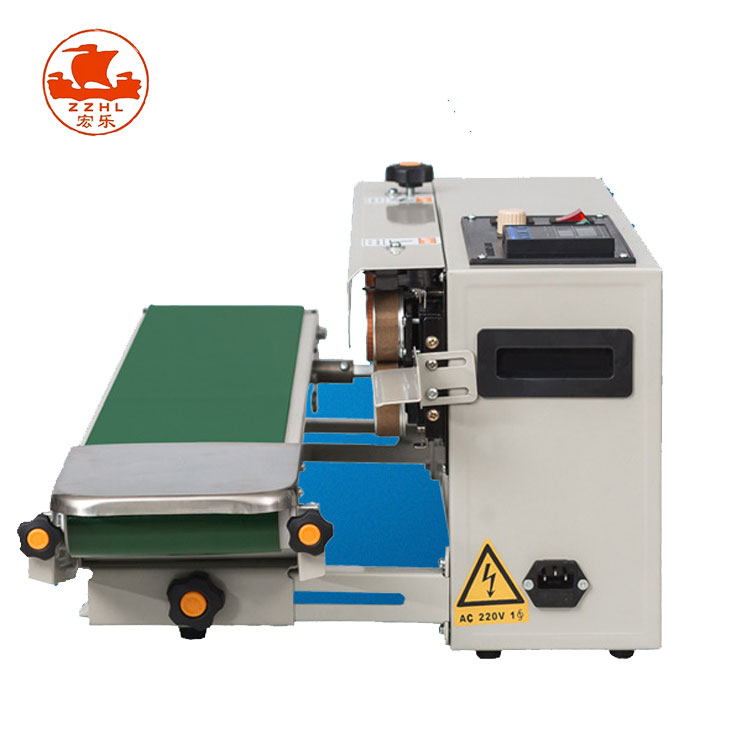

plastic packaging machine suitable for sealing, adopts electronic constant temperature control and stepless speed transmission mechanism, automatic and continuous sealing materials of plastic film, According to the need to also can configure creasing printed wheel and counting device.
PARAMETER
| Model | HLFK-980 | HLFK-770 | HLFK-900 |
| Voltage | AC220V/50HZ 110V/60HZ | AC220V/50HZ 110V/60HZ | AC220V/50HZ 110V/60HZ |
| Power | 80W | 80W | 80W |
| Sealing power | 700W | 2*300W | 2*300W |
| Working speed | 0-21m/min (0-30m/min) | 1-21m/min (1-30m/min) | 1-21m/min (1-30m/min) |
| Sealing width | 6-12mm(adjustable) | 6-12mm(adjustable) | 6-12mm(adjustable) |
| Tamp range | 0-300℃ | 0-300℃ Infinitely adjustable | 0-300℃ Infinitely adjustable |
| Printing type | Solid ink | Solid ink | Solid ink |
| Sealing centertothe conveyor distance | 10-40mm | 10-40mm | 10-40mm |
| Film thinkness(single) | ≤0.8mm | ≤0.8mm | ≤0.8mm |
| Conveyor size | 930*150mm | ||
| Total maxinum load weight | 6kg | ≤5kg | ≤5kg |
| Machine size | 950*400*430mm | 840*380*270mm | 840*380*270mm |
| Machine weight | 30kg | 21kg | 21kg |
