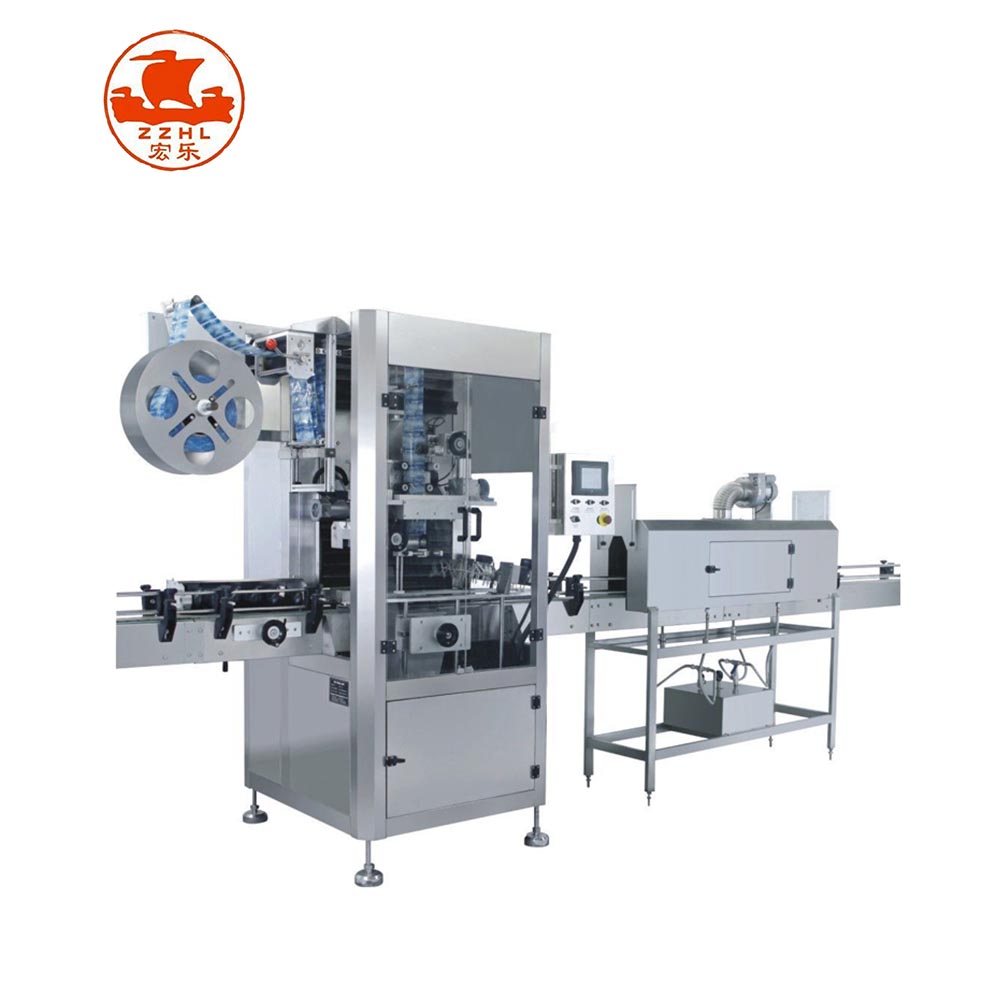

Automatic Heating Bottle Shrink Sleeve Labeling Machine Shrink Sleeve Applicator With Steam Tunnel

Equipment Feature:

1.Body is all covered stainless steel: water proof and no rustiness

2.Adjustable knife plan: original creation, double side edge of knife, long service time

3.Single fixed position center shaft, label transferring more stability

4.Stepper unscramble, label transferring more stability

5.label brush: sleeve more accurate and correction

6.Frame of label control electric eye: original creation tail wing connect with electric eye, improve accuracy of film cutting

7.Key type control box, more humanity

8.Material supplying frame: can select frame position freely

9.electric configuration description

10.Adopt PLC programable controller, imported servo motor, servo drive, frequency and sensor, also the fixed position frame to sure labeling accurate,fast and stability .

11.Suitable product’s type

All kinds of bottle, for example: round bottle,square bottle,flat bottle,curved bottle,cup and so on.

PARAMETER
Labeling speed About 60-150pcs/min(as per size of product and label)
Labeling accurate ±1mm (no mistake of product and label)
Product scope Diameterφ28mm -φ125mm,Height30mm - 280mm
Label scope Length30~250mm
Liner sleeve labeling machine L*W*H:1550mm×1055mm×2000mm     220V
