Equipment Description

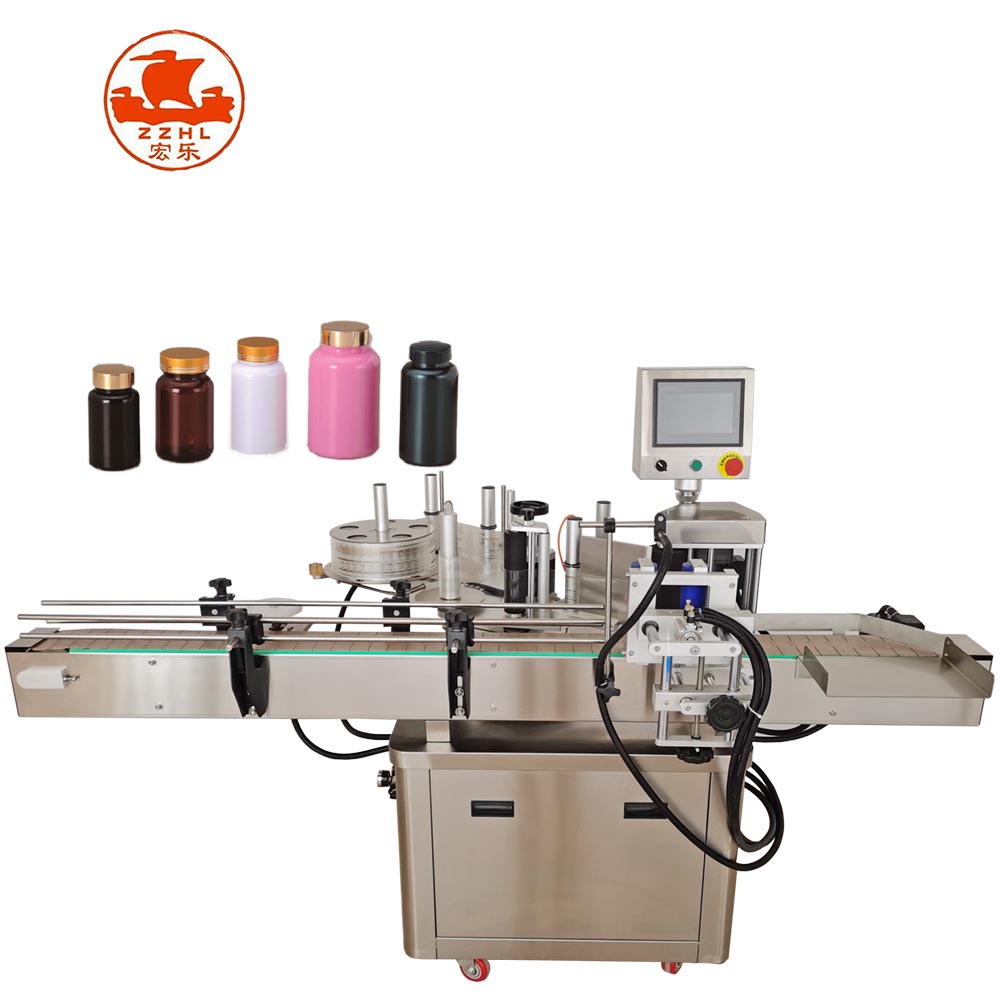

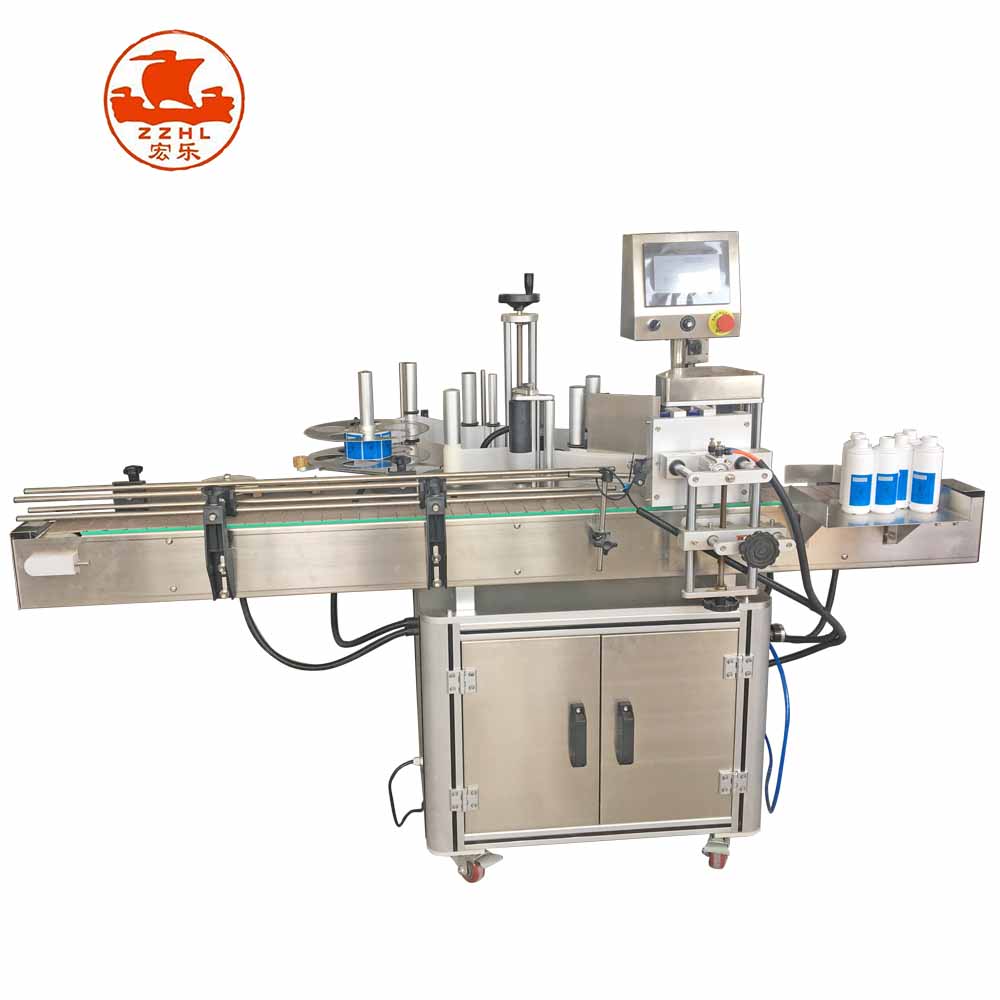

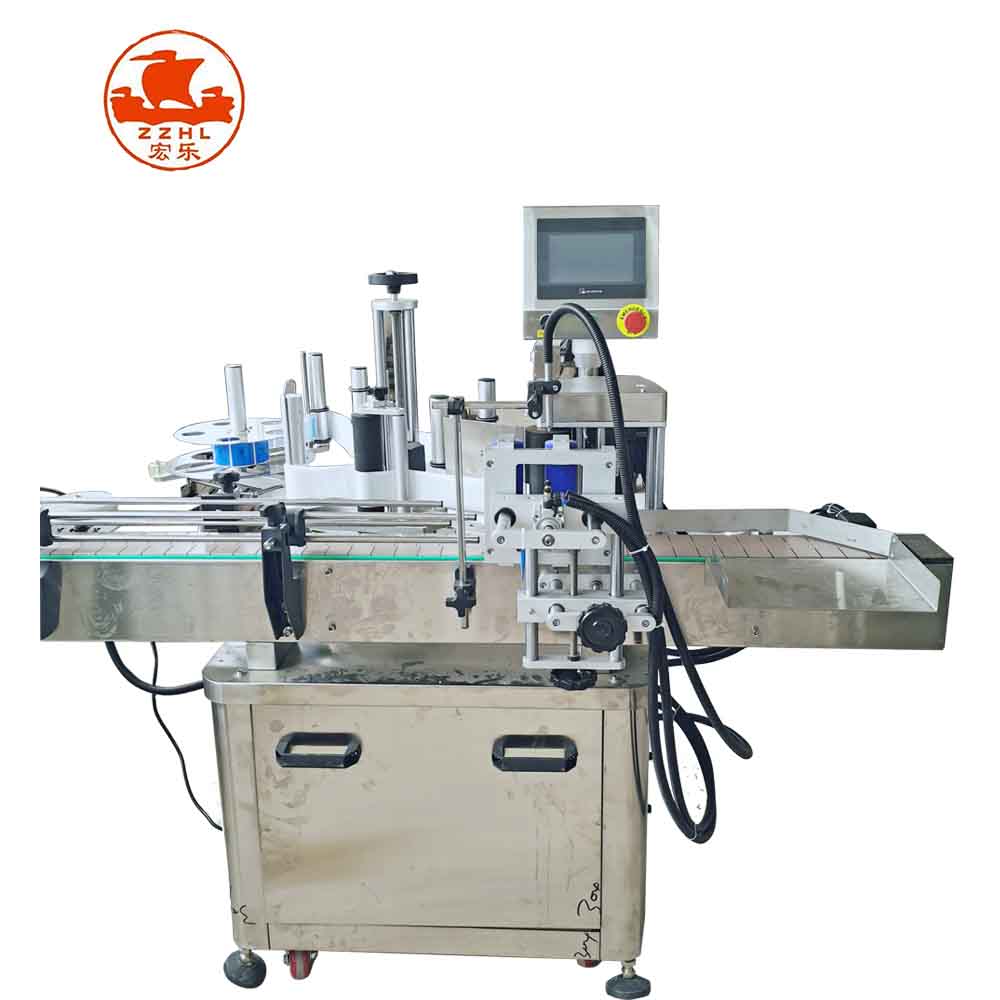

Automatic Labeling Machine can meet the needs of all round bottle labeling or semi circle labeling, bottle labeling switching between simple, convenient adjustment; Wide application range: self-adhesive labels, adhesive film, electronic monitoring code, bar code etc.
Application Industry: widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastics and other industries.
Application example: PET round bottle labeling, plastic bottle labeling, canned food, etc.
PARAMETER
| Model | HLRL-200B-BP |
| Driving mode | Stepper motor |
| Operation direction | Left in right out |
| Label Speed | 10-30pcs/min |
| Label Size | L:20-300mm W:30-150mm |
| Bottle Diameter | Φ30-100mm |
| Label Accuracy | ± depends on the roundness, truth and perpendicularity of the bottle |
| Min.Label Roll Inner Diameter | φ75mm |
| Max.Label Roll Out Diameter | φ320mm |
| Required Air Compressor | 0.4-0.6Mpa / ≥1.5kw 65L |
| Power | 765W |
| Voltage | 110V/220V 50hz/60hz |
| Machine Size | 2000*800*1400mm |
| Machine Weight | 150kg |
| Packing size weight wooden case | 2100*1000*1540mm 330KG |
| Package size weight wooden case with code printer | 2100*1100*1540 mm |
