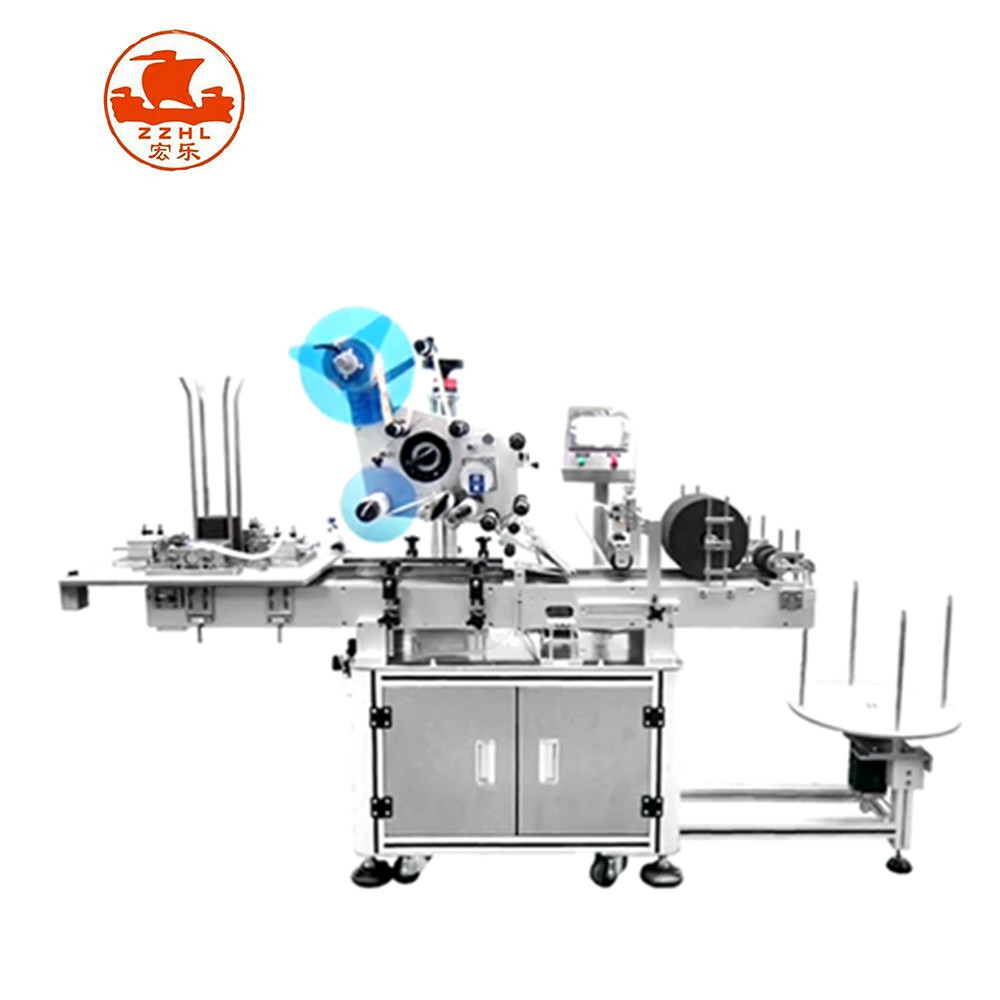

Grinding Wheels Abrasive Disc Labeling Machine With Auto Feeding Stacking And Collection Mechanism
Equipment Description

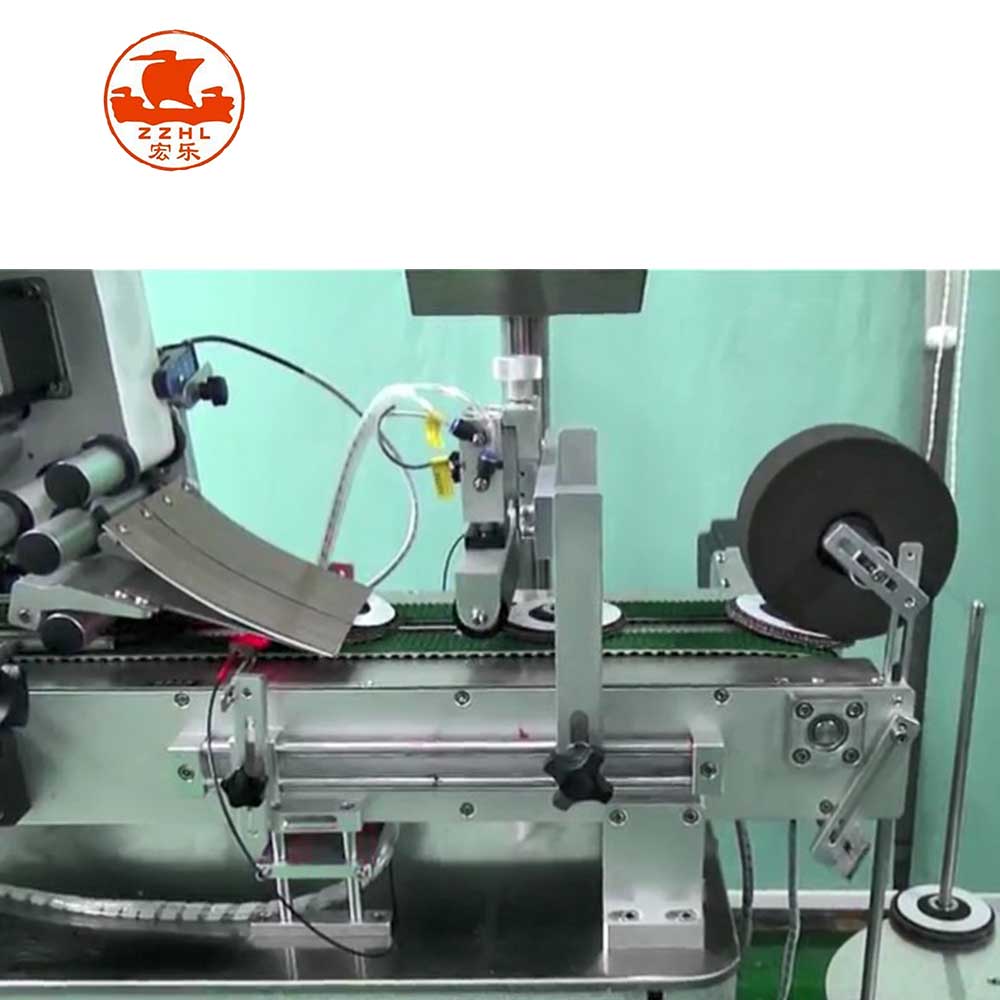

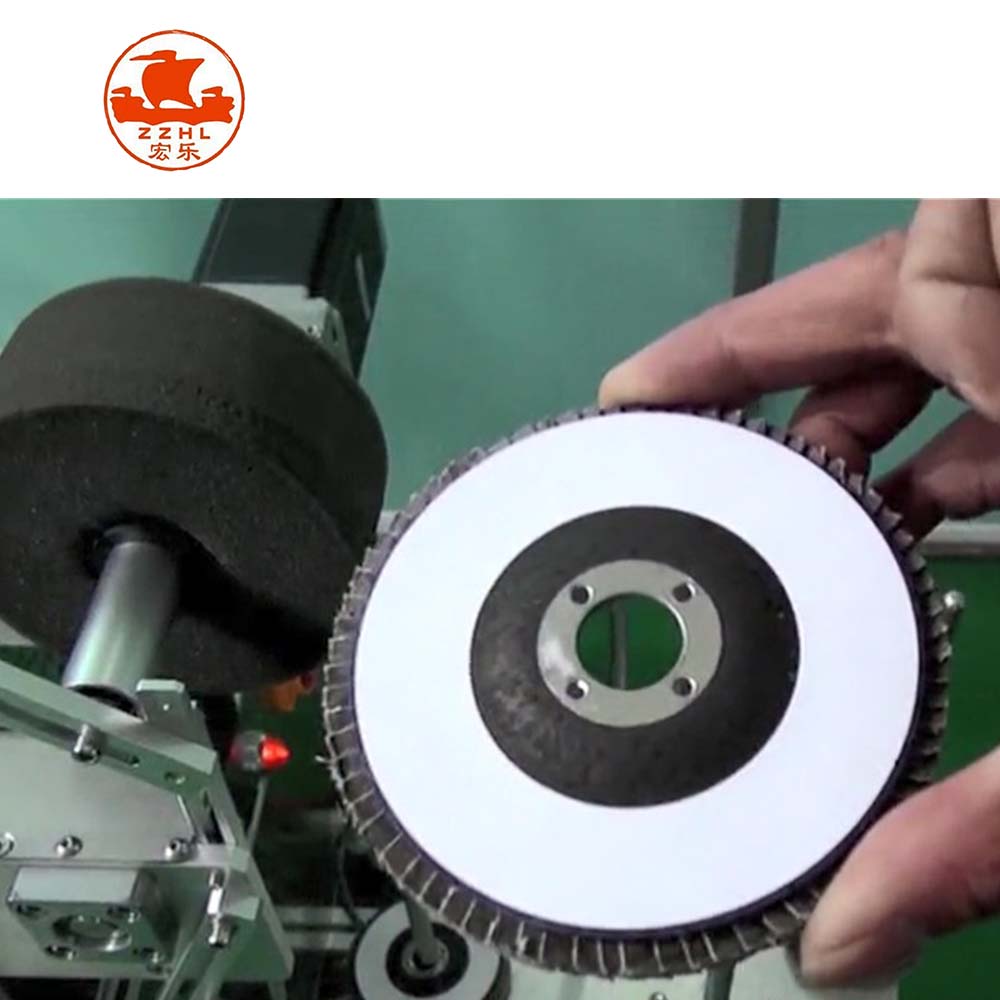

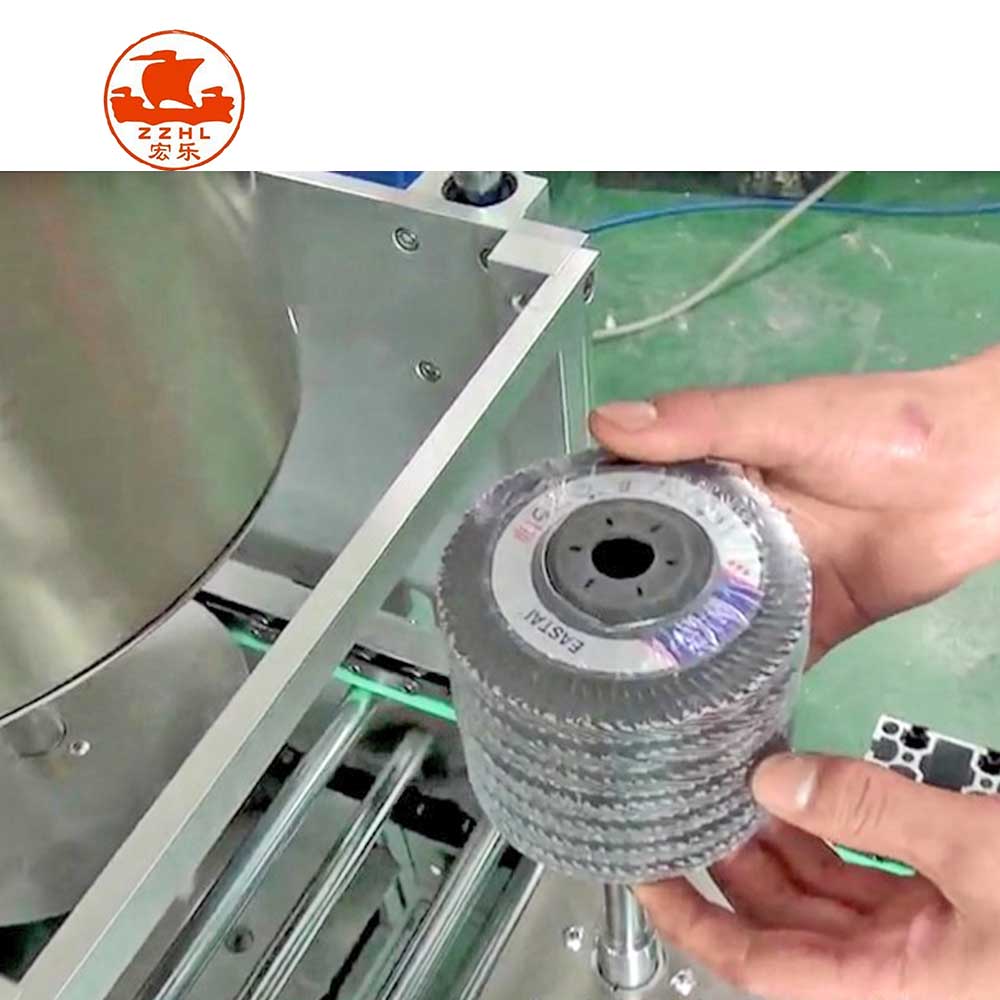

This machine is special for grinding wheel, diamond piece to label round sticks , automatic stick and receive bottom belt, improve working efficiency; automatic fix position , stick on static time, improve labeling accurate. Can be used match lots of produce line or grinding wheel sealing,film cutting and shrinking’s produce line.
PARAMETER
| Labeling speed | 30～45pcs/min |
| Labeling accurate | ±1mm |
| Product scope | φ100mm～130mm |
| Label scope | （bottom belt）Width20mm～150mm,Length30mm～150mm |
| voltage | 220V |
| size | L*W*H：1960×650×1350 |
| Height of Conveyor line | 750mm（customize） |
