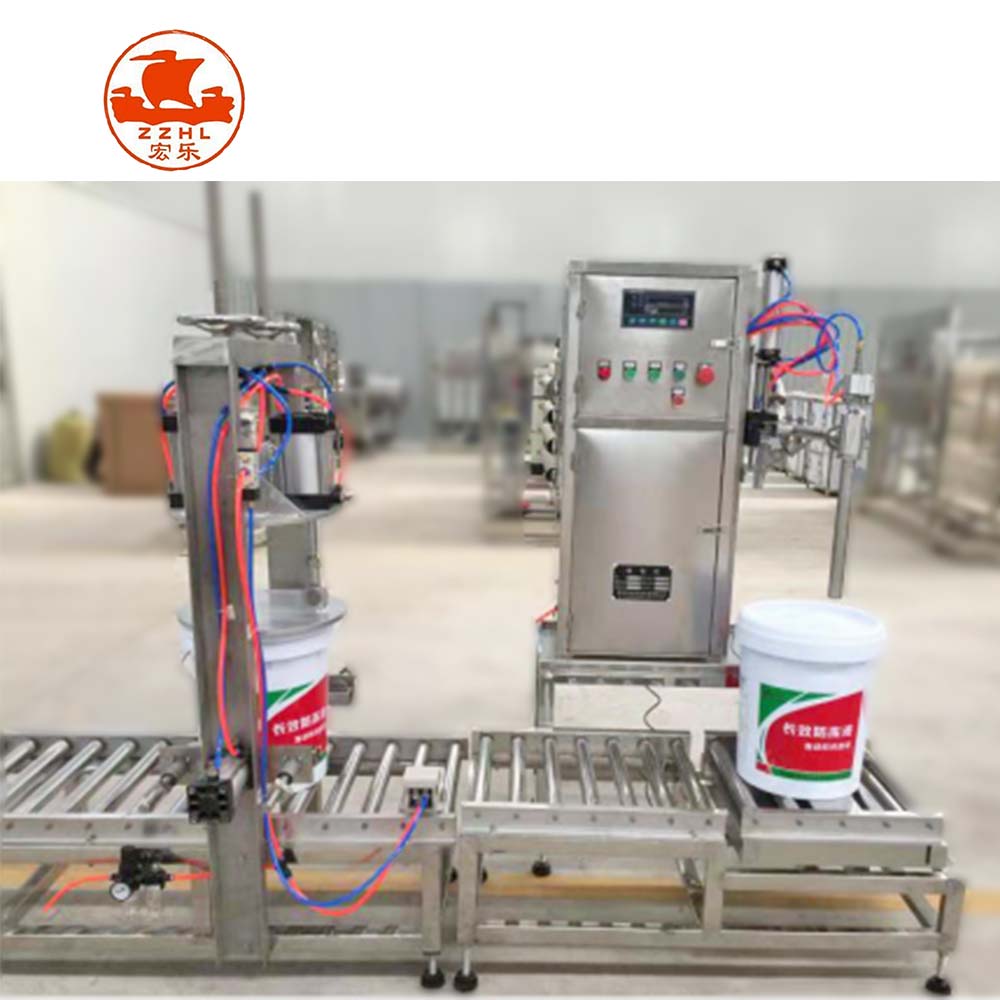

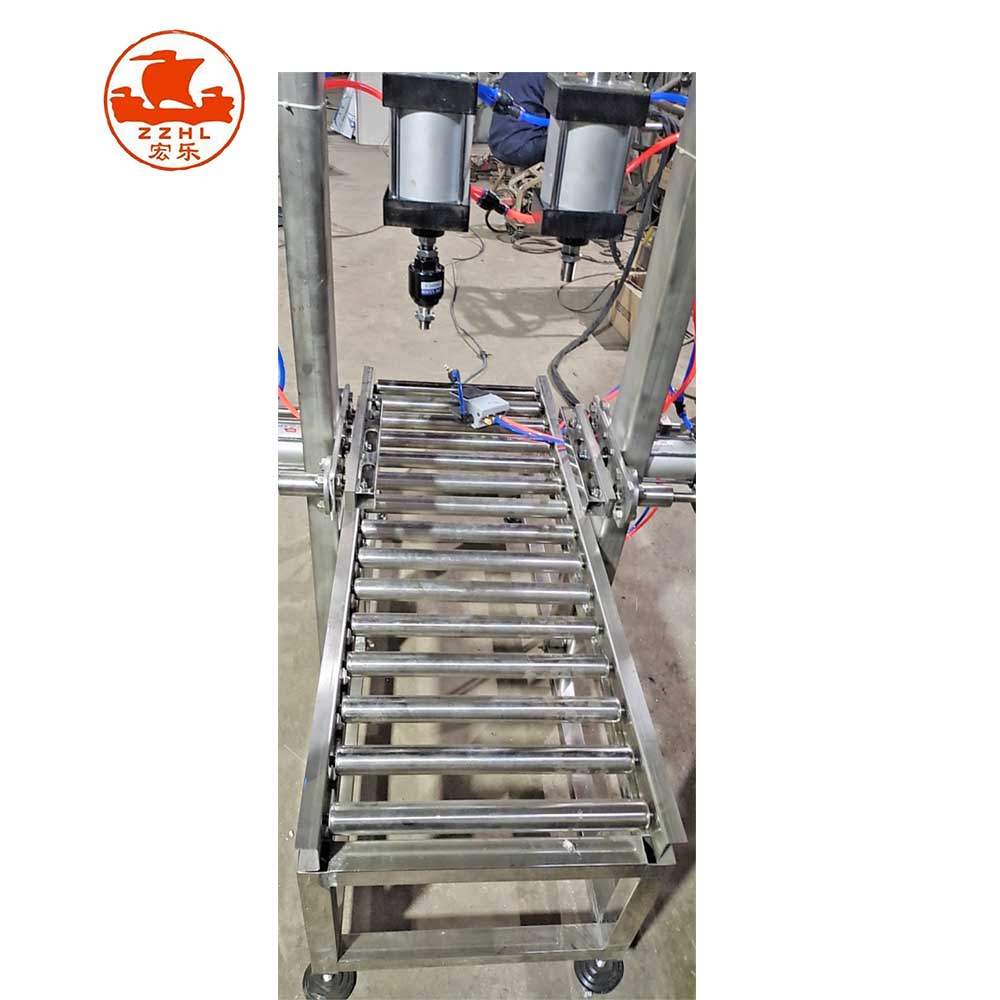

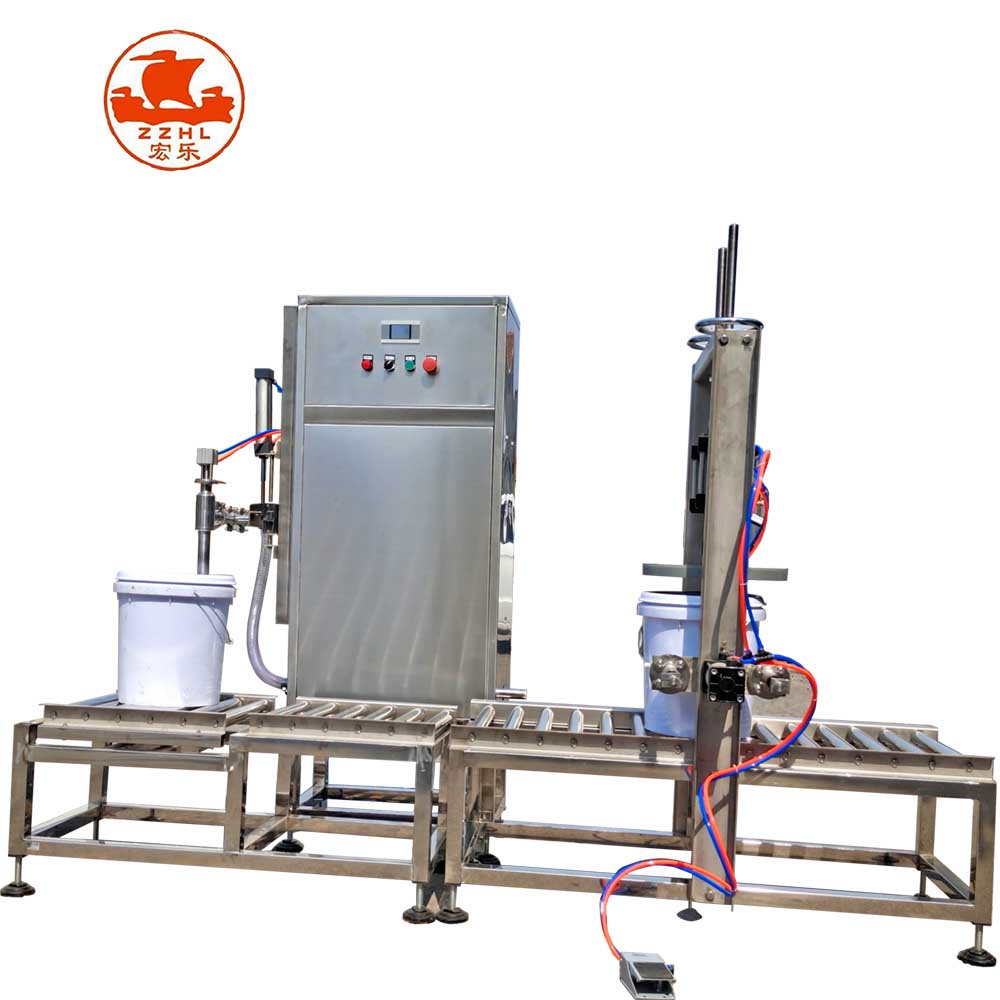

Jar Bottle Lube Oil Paint Fuel Petrol Liquid Pail Weight Scale Sealing Weighing Filling Machine

The principle of the machine is to set the metering under the control of the microcomputer program by the load cell platform.

The tare weight is first removed during filling.When the material is injected into the container,the high-dose fast-feeding is followed by the slow small-dose correction metering,and the vacuum issucked back.Function to prevent dripping.The operator only needs to put the containerin to the platform,the mouth is facing the lower nozzle.At thistime,the program starts.The lower nozzle is lowered the filling valve is opened,and when the set amount is reached,the feeding is stopped, and the feeding is stopped.The mouth rises and the filling process is completed.Then push the filled container to the under side of the capping machine head.After placingit,step on the foots witch, position the lid with the cylinder clampson both sides, press the lid,press the lid,take out the container, and press the lid.Loop operation can be.

Filling range：5—50kg 50-100kg

Voltage :380V

Filling speed: 10-120 bucket/h

Power:1.5kw

Pressure:0.3－0.35Ma

Accuracy :≤0.2%

Size :750×900×1600mm 1270×850×1500mm

Wooden packing size :1000*850*1800 1370*950*1700
