Equipment Description

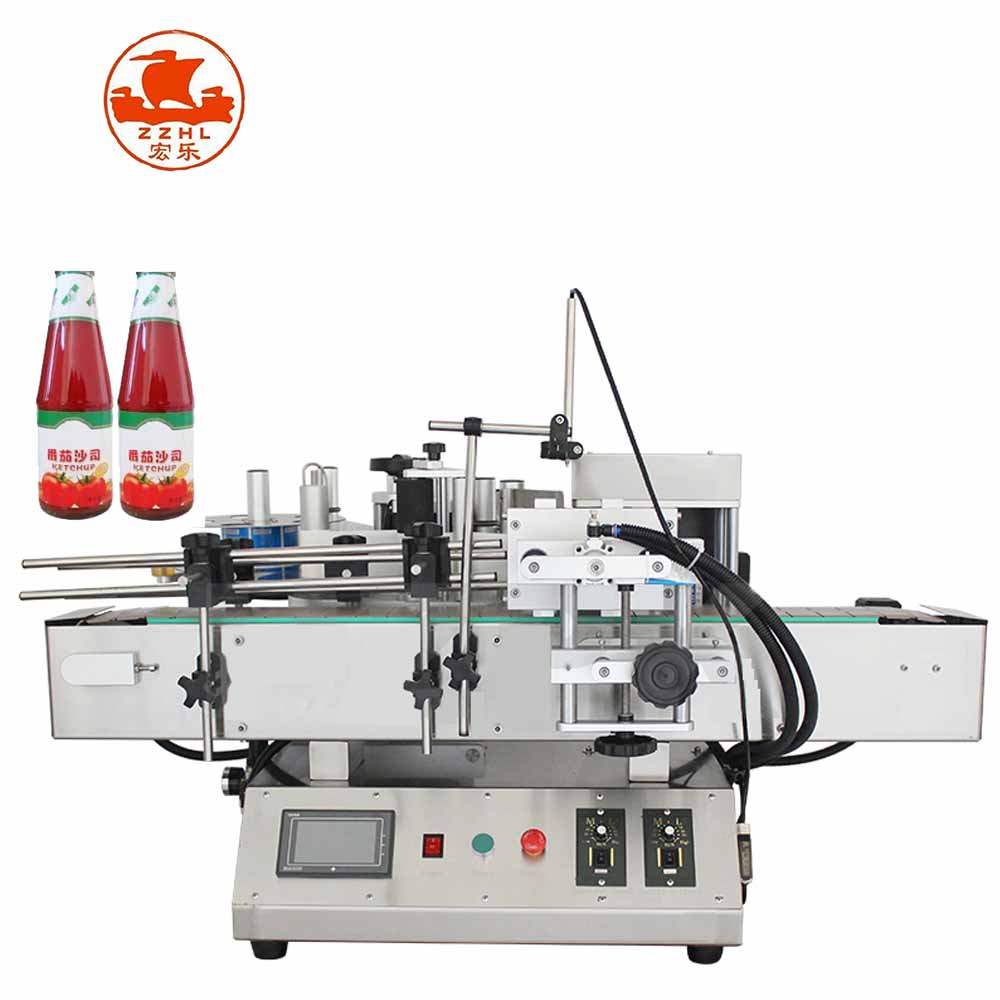

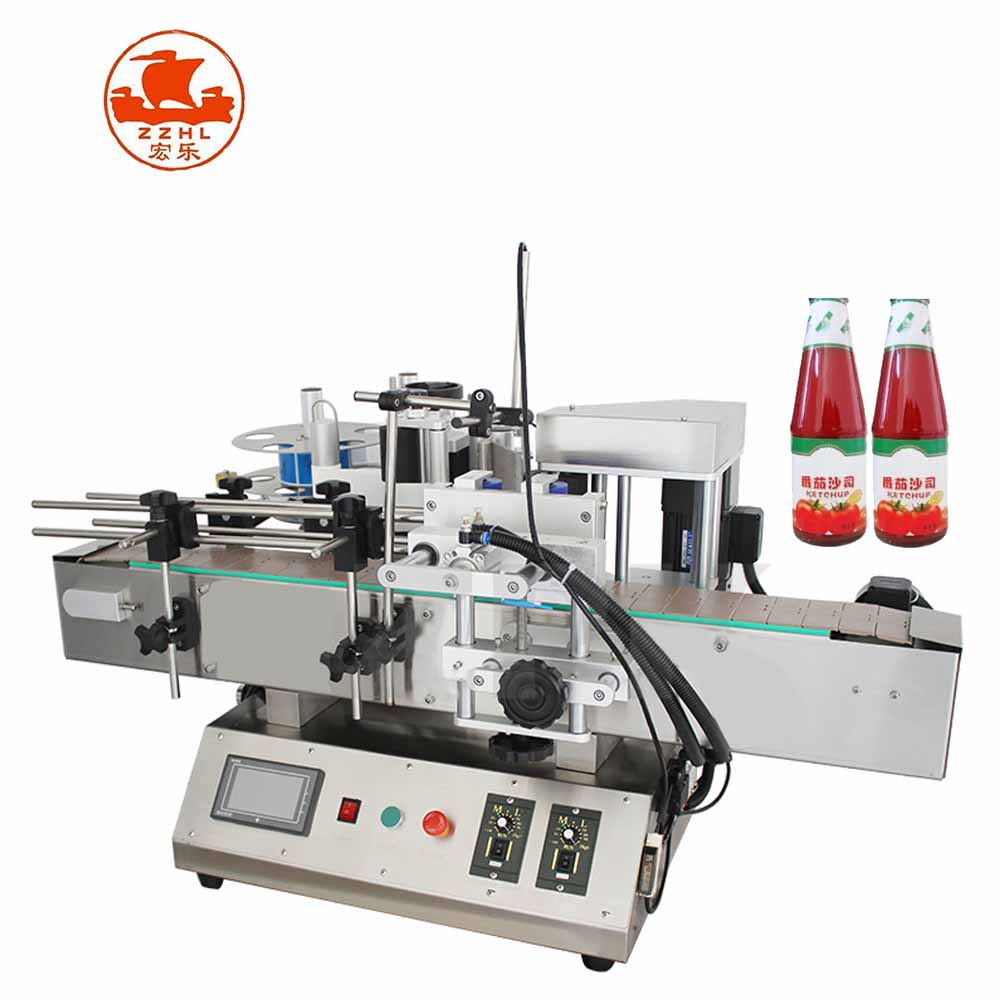

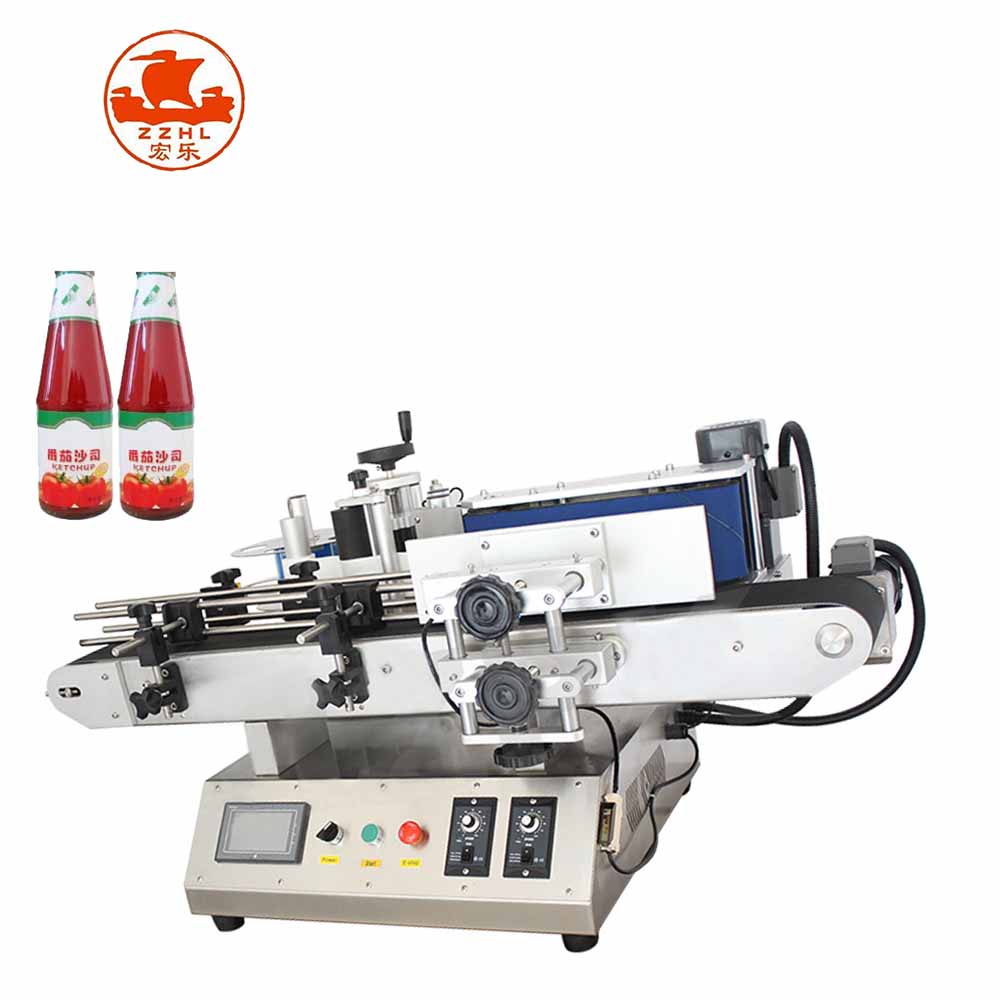

This round bottle labeling machine can be used for double side labeling.The desktop type labeling machine can save working space, but it can work automatically and accurately after you adjust and test working data.It is widely used to label round bottles like wine.
PARAMETER
| Model | HLT-120A | HLT-120B |
| Driving mode | Step Motor | Step Motor |
| Operation direction | Left to Right | Left to Right |
| Label Speed | 10-60pcs/min | 10-30pcs/min |
| Label Size | L:30-160mm W:30-100mm | L:30-200mm W:30-100mm |
| Bottle Diameter | φ30-100mm | φ30-80mm |
| Label Accuracy | ± depends on the roundness, truth and perpendicularity of the bottle | ± depends on the roundness, truth and perpendicularity of the bottle |
| Min.Label Roll Inner Diameter | φ75mm | φ75mm |
| Max.Label Roll Out Diameter | φ260mm | φ260mm |
| Voltage | 110V/220V 50hz/60hz 400W | 110V/220V 50hz/60hz 400W |
| Machine Size | 1200*900*680mm | 1200*900*680mm |
| Machine Weight | 130kg | 130kg |
| The size and weight Of wooden Packing case | 1300*850*730mm 140KG | 1300*850*730mm 140KG |
