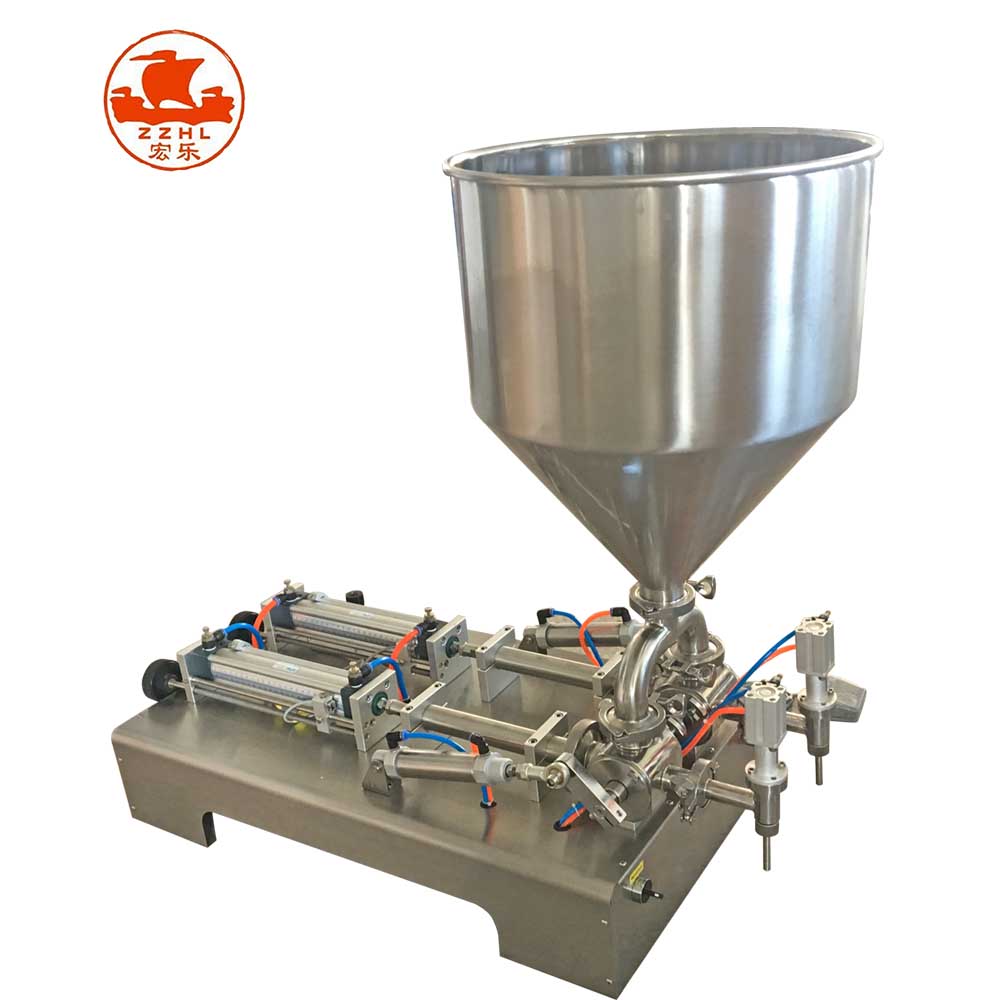

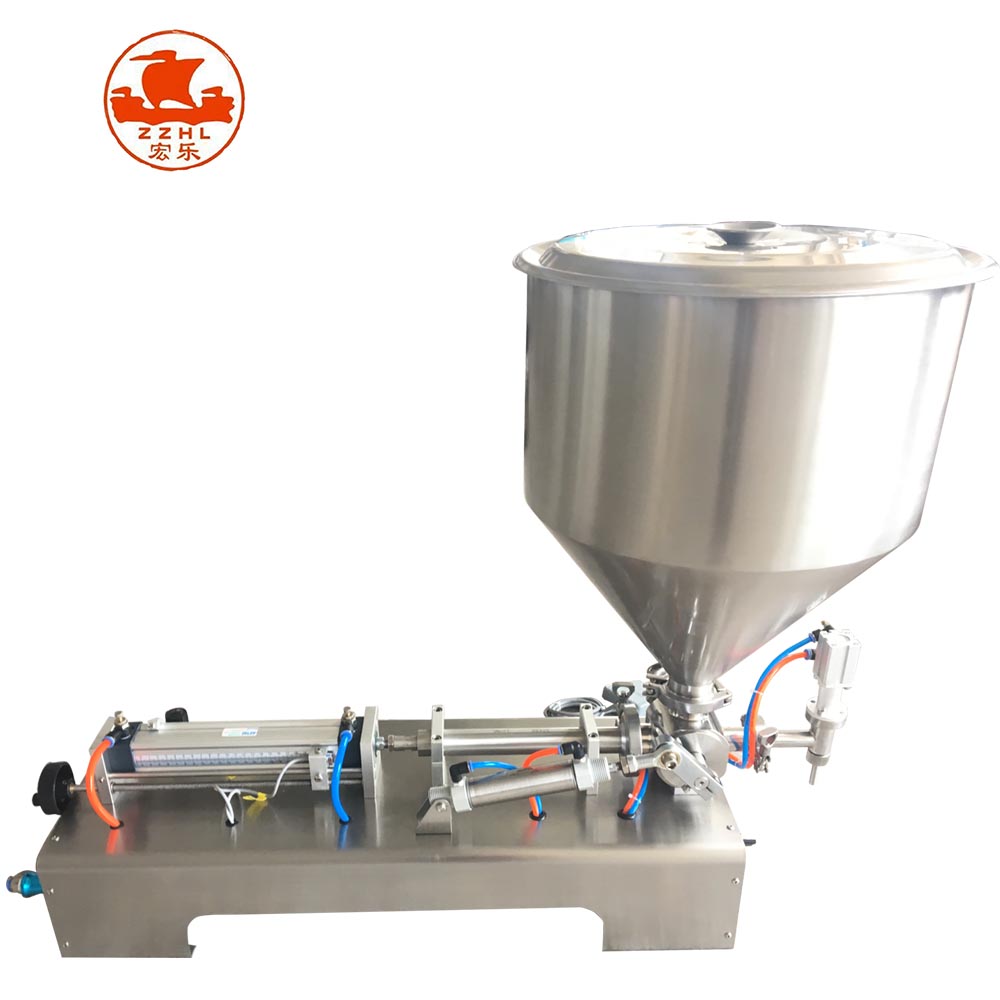

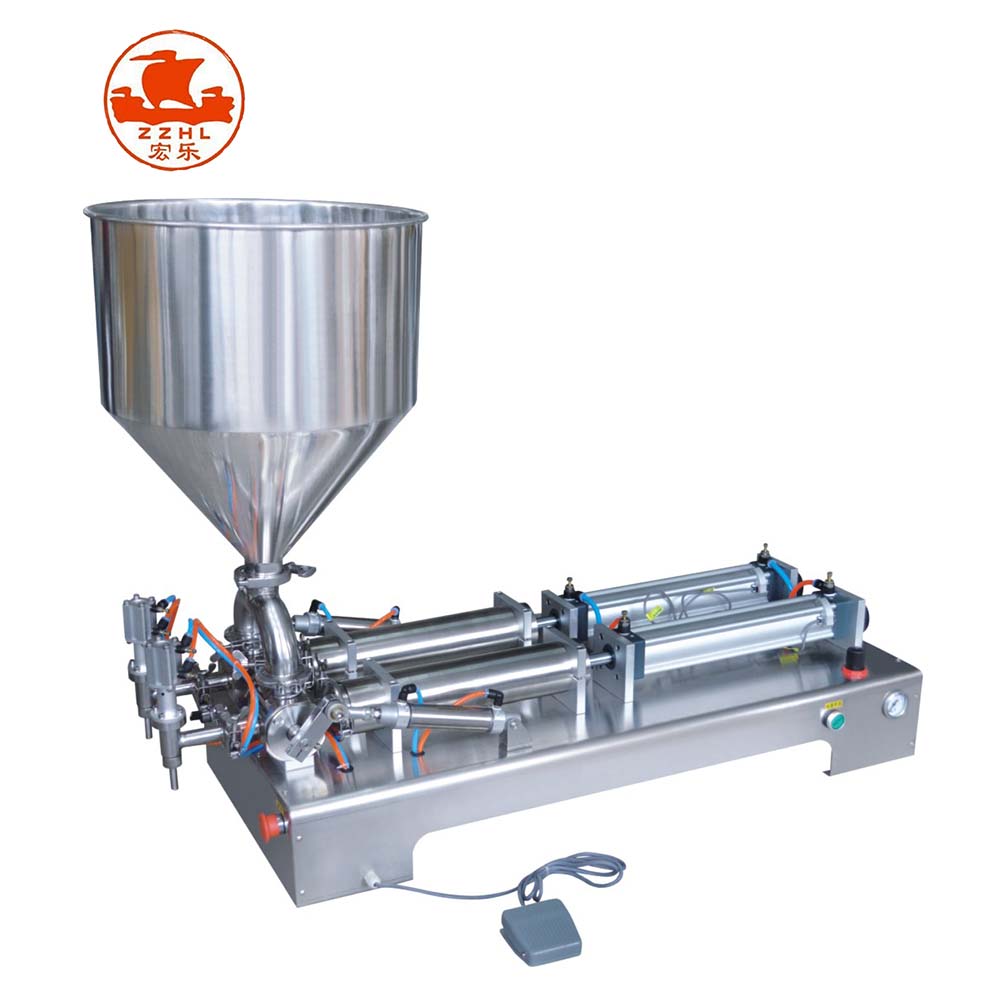

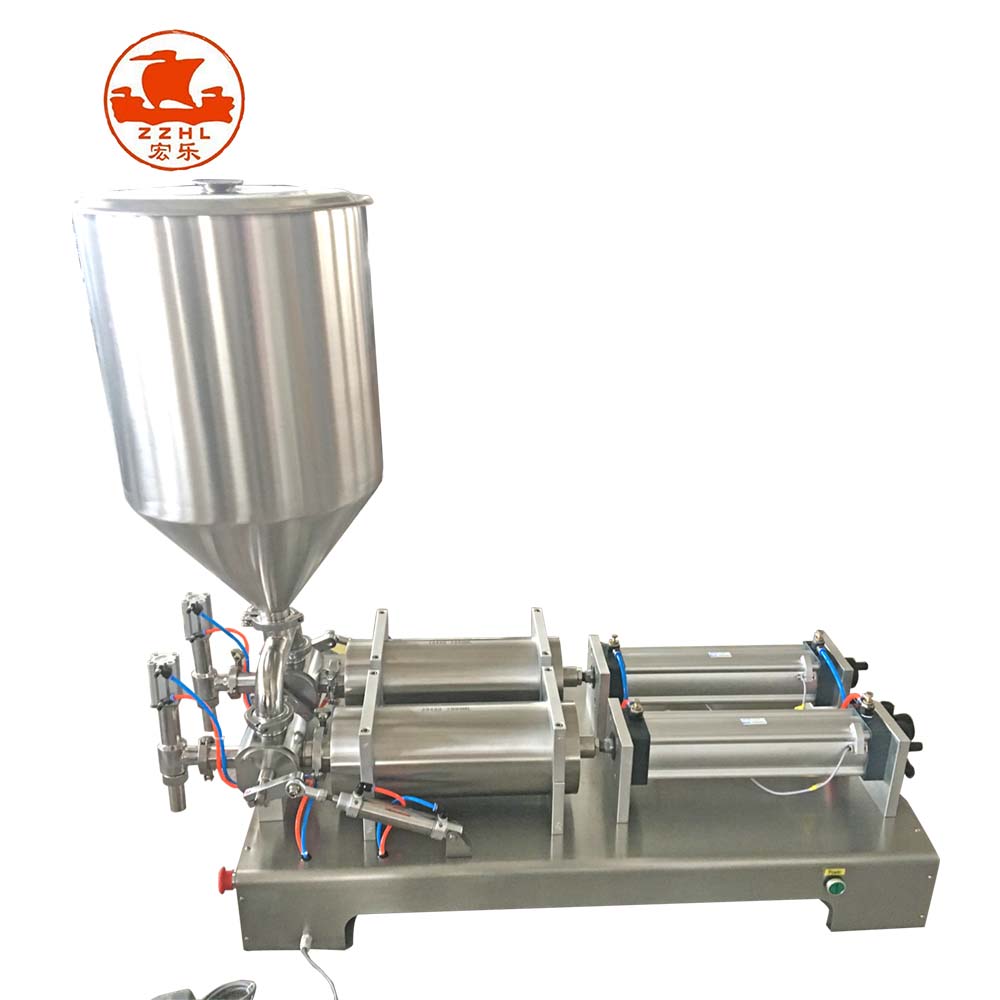

Filling machine applicable to the daily chemical industry, pharmaceutical industry, food industry, printing ink and paint industry the paste filling.
1.The filling machine for medium viscosity and high viscosity product canned needs to be developed
2. The whole machine has a storage hopper, two major part is electric cabinet, the structure is simple, operation is convenient.
3. The cylinder piston and cylinder block made of ptfe and stainless steel materials, in line with the GMP requirements.
4. The filling volume and filling speed can be adjusted, and the filling precision is high.
5. Canned using drip tight, prevent wire filling device.
6. The machine can be modified according to the requirements of explosion-proof filling system.
|
Model |
HL-G1W |
HL-G2W |
|
Voltage |
AC220V/110V 50-60HZ |
AC220V/110V 50-60HZ |
|
POWER |
20W |
40W |
|
Air pressure |
0.4-0.6MPa |
0.4-0.6MPa |
|
Filling speed |
4-18bpm (depends on filling volume) |
7-36bpm (depends on filling volume) |
|
Filling accuracy |
±1% |
±1% |
|
Optional filling volume |
10-100ml 30-300ml 50-500ml 100-1000ml 200-1500ml 300-2500ml |
10-100ml 30-300ml 50-500ml 100-1000ml 200-1500ml 300-2500ml |
|
Required air compressor |
>1.5kw 65L |
>3kw 100L |
-
This machine adopts frequency control for rotary motion, the bottle in the rotary tangential force in order to enter the conveyor belt, supporting and packaging production lines, save labor, improve efficiency, applicable range of 50-1000ml container glass bottles, plastic bottles, plastic bottle, etc.
5-50ml Small Bottle Filling Packing Machine Production Line
-
This machine is suitable for packaging liquid products with good free flow. Such as: food sauces, seasonings, liquids, emulsifiable concentrates, foliar fertilizers, etc.
Automatic Paste Packing Machine
-
Adopted piston quantitative, mechanical and electrical, pneumatic in one, electrical and pneumatic components used well-known brands.
Fully Automatic Paste Liquid Filling Processing Line
-
This type of paste filling machine adopts photoelectric automatic control system, unique piston filling form, which can not only continuous filling, but also free filling machine.
Chili Sauce Letinous Edodes Sauce Automatic Filling Packing Machine Production Line
