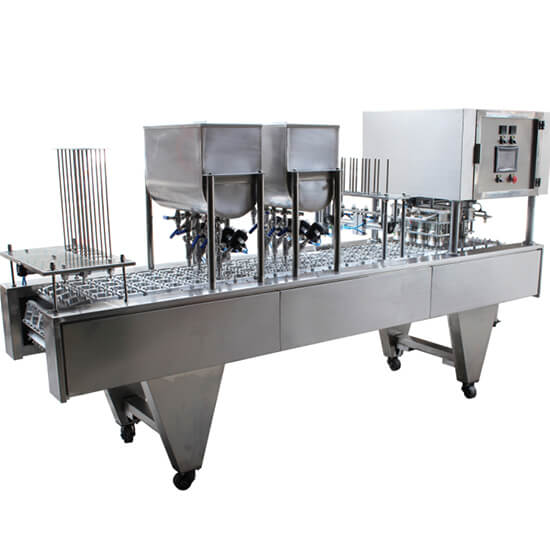

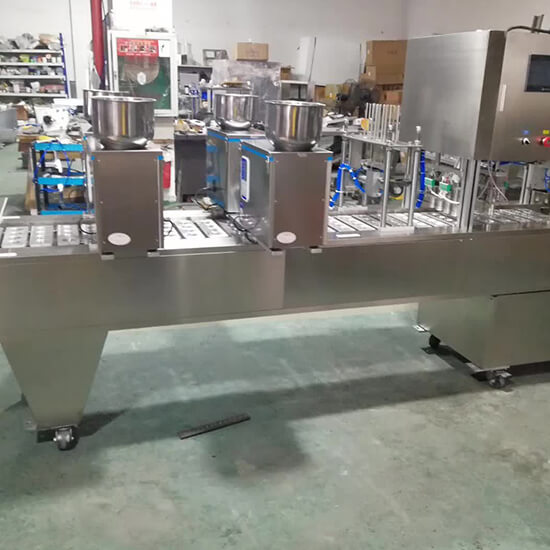

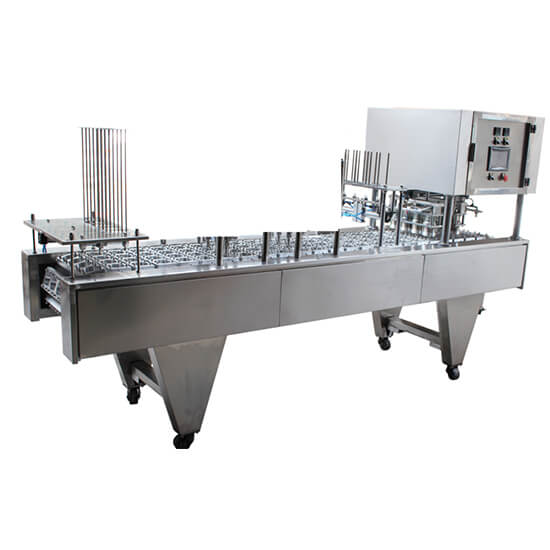

Automatic Cup Filling Sealing Machine

Functional process: Put the barrels - automatic film - seal - out the barrel

Conventional configuration :
Pneumatic components (Asia off)
PLC (Omron)
Screen (Taiwan Wei Lun)
Contactor (Schneider)
Acid resistance Aluminum molds

Introduction to the machine :
Fully automatic filling and sealing machines are all fully automatic high-speed sealing machines, which are fully automatic operations from cup dropping, filling, film placement, coding, double sealing, and cup discharge. It is suitable for the filling and sealing of liquids, pastes and powders in plastic cups of various shapes. For example: five grains, jelly, yogurt, ice cream, juice, condiments, sauces, soy milk, coffee powder, soy milk powder, sour plum soup, soy milk, etc.
Electrical and pneumatic components are made of domestic and foreign famous brand manufacturers (also can be customized according to customer needs), stable quality, long service life, important mechanical parts are made of advanced precision machining centers, so the mechanical cooperation is good, and the work is stable. , Advanced performance and reliable quality. The machine temperature control system adopts a brand-new electric heating constant temperature controller, which is a new generation of intelligent heating system with good temperature control effect, more energy saving, brand new design, reasonable and beautiful structure, acid-resistant stainless steel material, conforming to hygienic standards, and easy maintenance.
The automatic filling and sealing machine is suitable for filling and sealing containers of different specifications. At the same time, it can be equipped with different filling types, such as self-flow type, plug type, measuring cup type, negative pressure type, screw type filling, etc., so as to be suitable for filling a variety of different products.
a: The whole machine has advanced design, reasonable structure and reliable performance;
b: Fully automatic operation, adjustable production speed, easy and safe operation, improved work efficiency, and reduced labor costs;
c: Photoelectric eye calibration chart to ensure accurate sealing;
d: Sealing twice, the sealing pressure is adjustable, and it can be sealed as easy to tear or not easy to tear according to customer requirements, thus reflecting a more humanized design;
e: The sealing is firm, the edges are smooth and flawless;
f: The equipment can be customized according to customer requirements and other auxiliary functions can be added.
Fully automatic operation: the whole production process of cup dropping, filling, film releasing, sealing and cup discharge can be completed automatically. The technical configuration can be adjusted according to the different needs of customers.
The machine is made of steel and stainless steel, with simple structure and easy operation.

System composition :
Cup drop system: It is composed of rack, slide rail, cup storage bin, etc. When the template is stopped, the signal is sent to synchronize the control action to be completed. Stable and efficient.
Filling system: The storage tank is made of stainless steel 304, the size can be customized. The filling volume can be adjusted freely, quantitatively and accurately, filling accuracy is high, no dripping, and mixing system and heat preservation and heating system can be added.
Film unwinding system: This machine lays the film directly above the empty cup through the film roll and take-up system, with high accuracy, time-saving and high-efficiency.
Coding system: automatic ribbon coding (constant temperature control) is adjustable, and characters can be changed quickly. Easy to load and unload.
Film correction system: Photoelectric eye tracking automatically corrects the film pattern to align with the cup mouth.

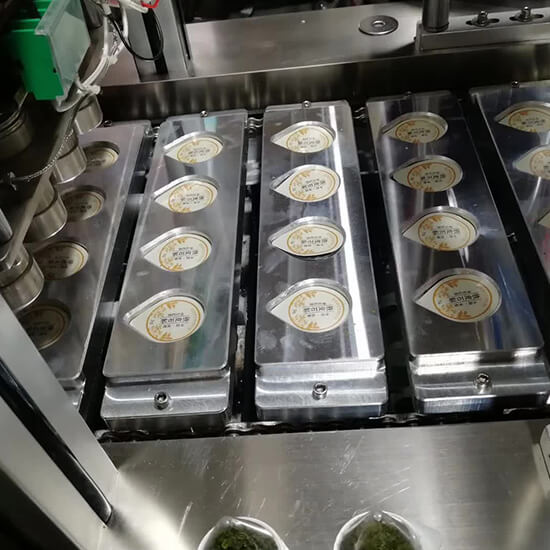

Sealing system: It adopts constant temperature (intelligent temperature control) hot pressing for two times of sealing, and the sealing head is made of first-grade brass, which has good thermal conductivity and is firm and strong.
Control system: machinery is the button and the main components are well-known brands at home and abroad.
The automatic filling and sealing machine adopts a chain stepping transmission mechanism. Can work continuously for 24 hours. The use of anti-corrosion materials such as stainless steel, aluminum alloy, and copper conforms to the Food Sanitation Law. The stable and reliable performance is the ideal main equipment of the beverage production line. This machine can automatically (manually) put the cups. The electrical and pneumatic components of this machine adopt international famous brands such as Germany, France and Japan. The man-machine interface, PLC plus standby control system can be configured as required.
