Usage :
This product is mainly used for packing liquid soap, shampoo, beverages, oil, honey, bean paste, jelly and other liquid material.
This machine is suitable for packaging liquid products with good free flow. Such as: food sauces, seasonings, liquids, emulsifiable concentrates, foliar fertilizers, etc.

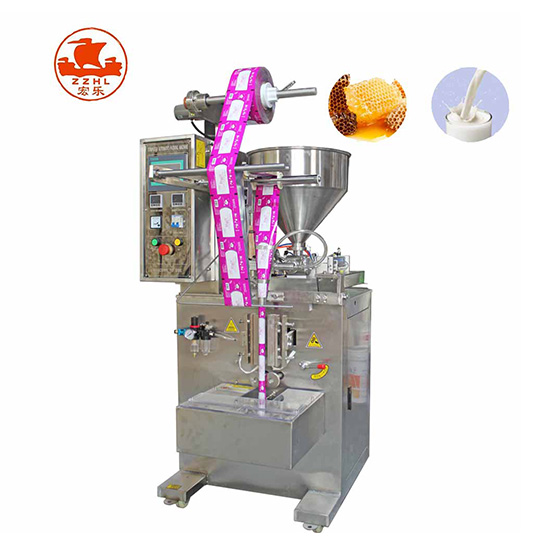

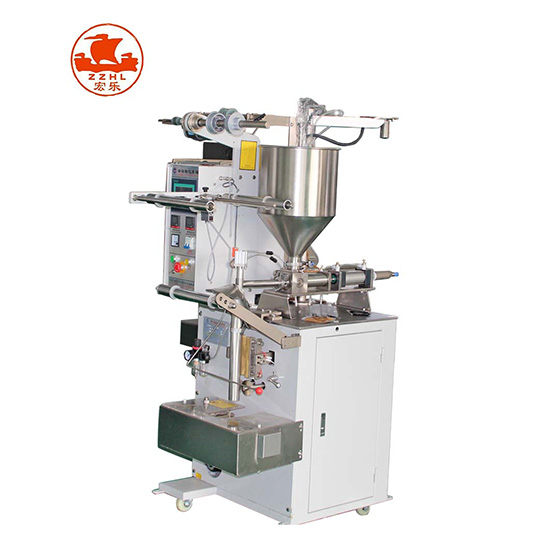

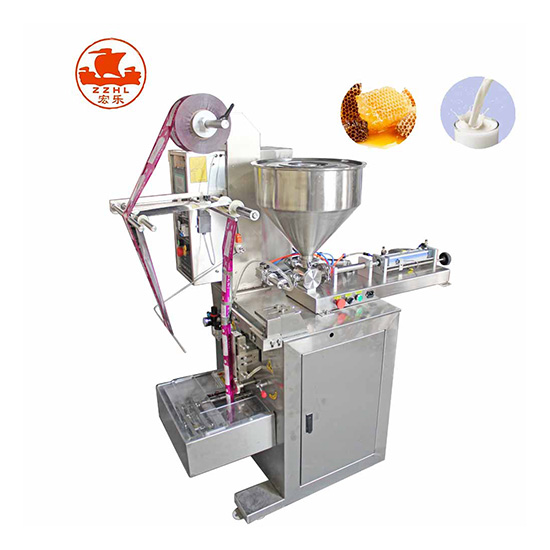

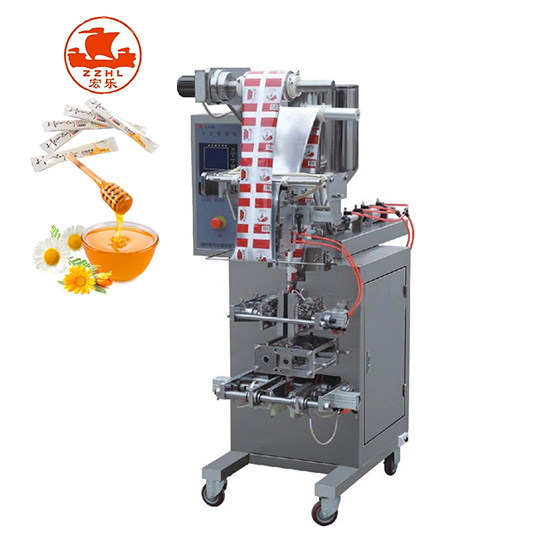

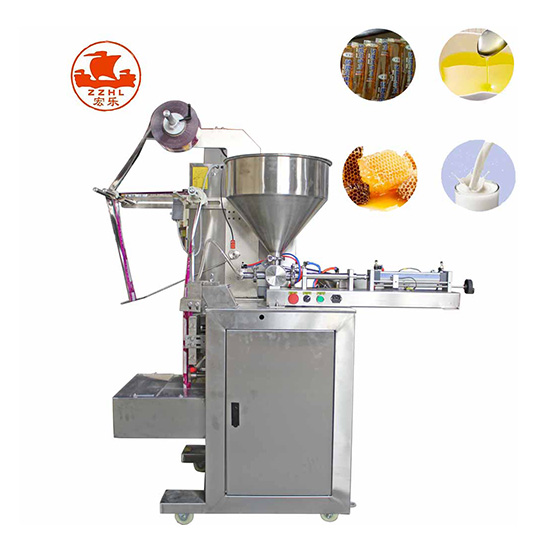

1. This loom above is a paste filling machine quantitative weight we need sauce packet silos middle there stirred to ensure our material evenly.
2. Sealing method can be back seal can also be sealing edges or trilateral closure, customers can choose according to their preferences.
The above is the standard model parameters, specific to your requirements can be customized.
(This model is suitable for packet sauce packets)
Technical Features :
1. Computer control, LCD display, convenient operation, stable and reliable operation.
2. The stepping motor controls the bag-drawing system, and the bag-making precision is high.
3. The machine stops when the bag is fixed, and the heat-sealing mold is automatically in the open state after the machine stops.
4. Automatically track the color code, automatically complete the positioning and length of the packaging bag.
5. Piston type metering method
| Model | HL-50A4 |
| Speed | 35-70bags/min |
| Measuring range | 5—100 ml |
| Bag size(unfold size) | L50—130mm W40—140mm |
| Voltage | 220V50HZ0.55 KW |
| Send film Motor | DC24V25 W |
| Power of the heater | 300Wх4 |
| Dimension | 690mm*990mm*1630mm |
| Weight | 250kg |
-
This machine is equipped with a dual-CPU microcomputer control system, a 5-inch LCD display in Chinese or English, a humanized operation interface, automatic cursor detection and tracking, and simpler operation. Equipped with a high-precision stepping motor to ensure the accuracy of the cutting position of each packaging bag.
280 350 Model Automatic Powder Packing Machine
-
PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
520 Type Automatic Powder Packing Machine
-
Applicable scope for packaging milk powder, sesame paste, strong bone powder, condiments, Ganoderma lucidum powder, granules and other items.
HL-GDF Full Automatic Powder Filling and Packing Machine
-
Suitable for quantitative filling of various bottles, cans and bags,Photoelectric induction blanking, or optional foot switch blanking,Feedback scale and indexing value can be adjusted to meet various accuracy requirements.
Semi-automatic Powder Packaging Machine
