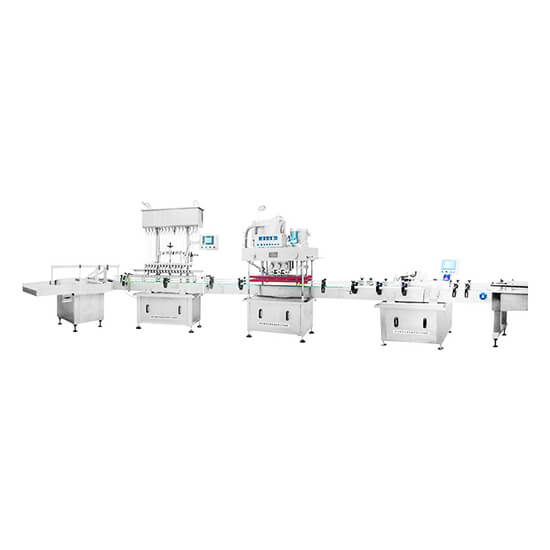

Full Automatic Liquid High Speed Filling Packing Machine Production Line

1．J Rotary Type Automatic Unscrambler
2．L16 Automatic Liquid Filling Machine
3．Xg High Speed Belt Capping Machine
4．Tb-Yp Vertical Type Round Bottle Labeling Machine

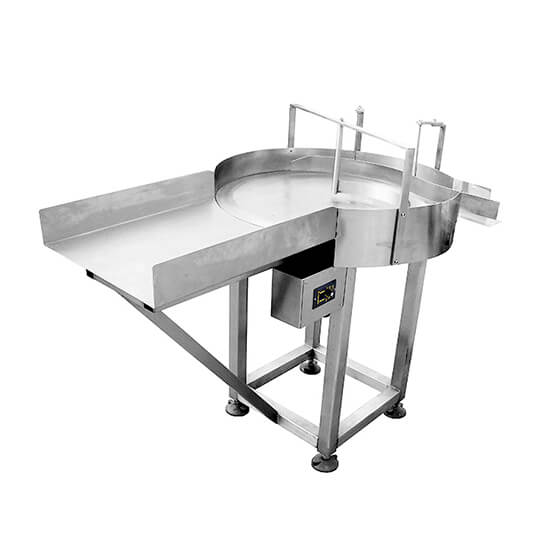

1. J Rotary Type Automatic Unscrambler

Technical Features :
This machine adopts frequency control for rotary motion, the bottle in the rotary tangential force in order to enter the conveyor belt, supporting and packaging production lines, save labor, improve efficiency, applicable range of 50-1000ml container glass bottles, plastic bottles, plastic bottle, etc.
The main parts of this machine are made of high quality stainless steel and meet the requirements of GMP.

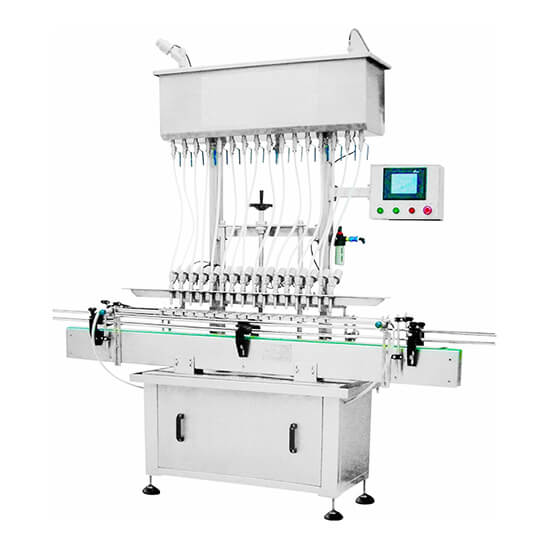

2. L16 Automatic Liquid Filling Packing Machine

Parameters :

Technical Features :
L type inline filling machine is a new and high technology filling equipment which consists of micro computer (PLC), programmable control, photoelectric sensing and pneumatic execution. Widely used in fruit juice, soy sauce, vinegar, mineral water, pesticides, chemicals, detergents, oral liquid, disinfectant, lubricating oil and cosmetics and other liquid filling. Filling accurate metering, no bubbles, no drip. The utility model is suitable for filling various 40-1000ml bottles (including special-shaped bottles).

Advanced Technology :
1. the machine is suitable for filling different specifications of containers, and can change the filling specifications in a few minutes.
2. short filling cycle and high production capacity.
3. replace filling specifications, no need to add equipment, just need to make adjustments to complete.
4. users can choose the number of filling according to their own production capacity, determine the number of filling head.
5. touch operation screen, can display the status of production, operating procedures, filling etc..
6. Each filling head is provided with a bottle mouth device to ensure accurate feeding.

Unique Filling Method :
1. the design of linear selection, grouping, bottle, bottle way, so that the expansion of filling function, all kinds of containers, can be effectively filling in this equipment.
2. the use of international advanced gas filling valve, to ensure the filling process without dripping, no drooping.
3. powerful PLC software support, ideal filling operation can be realized.
4. friendly man-machine interface, so the operation was completed in the touch screen.

Accurate Metering Control :
1. Filling adopts fixed flow channel parameters, control filling time, realize different measurement filling.
2. Pneumatic valve filling accurate time can be set to 0.01 wonderful, can make the measurement accuracy in the range of + 1% error, reduce unnecessary material loss, improve user economic benefits.
3. Each filling head measurement can be adjusted separately, in order to achieve consistent filling measurement.
4. The machine has set a bottle count program, no bottle, count is not in place, not filling, and only when the counter records the number of bottles and set the number of bottles in conformity with the beginning of filling.
5. The amount of filling, you can start the transfer to the required amount of filling, and then fine-tuning, you can get ideal filling metering accuracy.

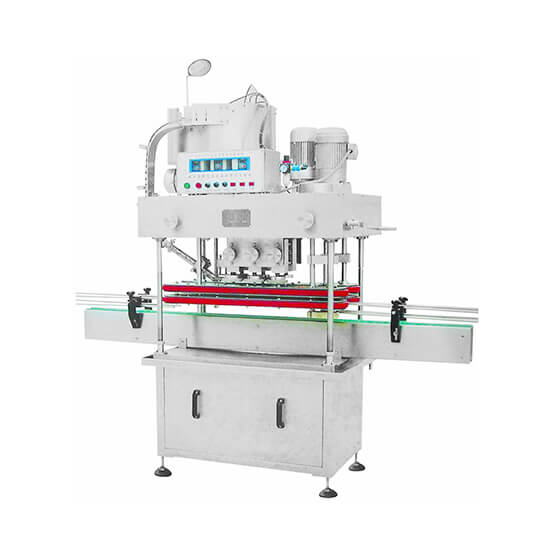

3. XG High Speed Belt Capping Machine

Parameters :

Technical Features :
This machine is based on the experience of domestic and foreign rotary capping machines, and is designed for the diversity of rotary cover.

Major Advantages :
When the bottle and the cover are changed, the parts need not be replaced, as long as the device is adjusted, the rotary cover has high passing rate, high speed and convenient operation and maintenance. The capping wheel from the engagement device, thus ensuring cap in place, but not too tight, the cap; additional two sets of bottle clamping ring mechanism, unstable bottle or bottle also applies high. The device is equipped with aluminum foil removal device, the cover without aluminum foil is automatically removed before the lower cover, to ensure the cover rate of aluminum foil is 100%. The main parts of this machine are made of high quality stainless steel and meet the requirements of GMP.

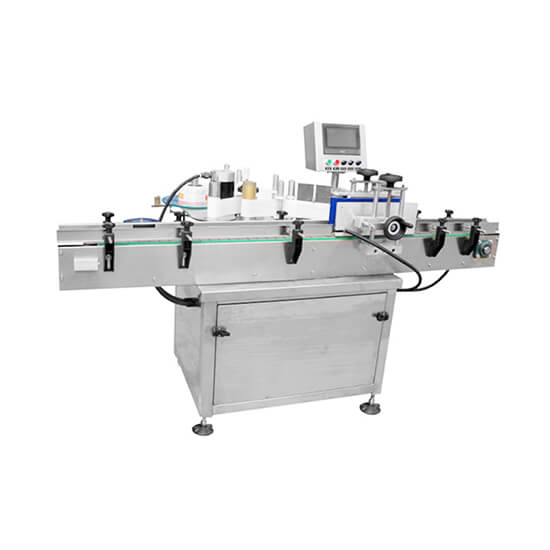

4. TB-YP Vertical Type Round Bottle Labeling Machine

Parameters :

Technical Features :
Vertical labeling machine adopts advanced rolling on labeling, using computer control fiber, synchronous tracking, a bid by the stepper motor or servo motor control, automatic detection and automatic container and label size, location and other advanced features, to ensure accurate labeling, automatic synchronization.
The host adopts microcomputer mode control, touch type large LCD panel, display and storage of ten sets of memory devices, is a modern advanced mechanical and electrical equipment. When the single machine is in use, the optional delivery (receiving) material tray can also be directly connected with the production line, and the utility model has excellent and reliable working performance. It can also be equipped with printer to print labels synchronously.
Self-adhesive labeling machine is easy to clean, not moldy, after labeling beautiful, firm, will not fall off their own, high production efficiency. This series of models is made of 304 stainless steel and advanced aluminum alloy treated by anodic treatment. It conforms to GMP standard. It is suitable for automatic labeling of containers in medicine, daily chemicals, food and other industries.
