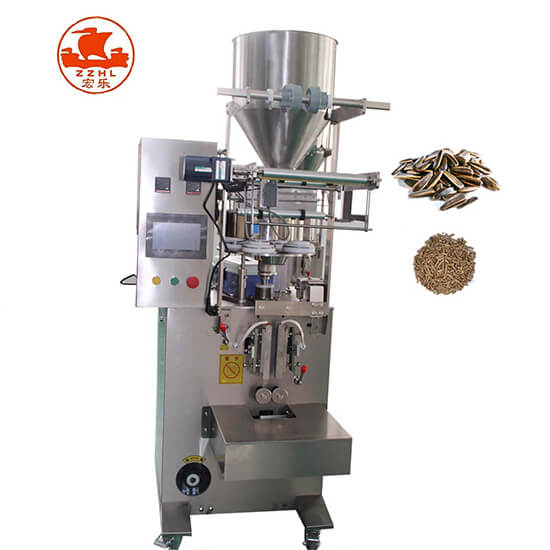

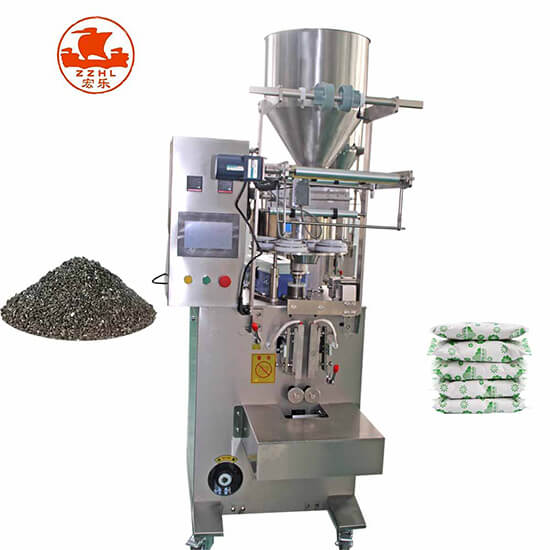

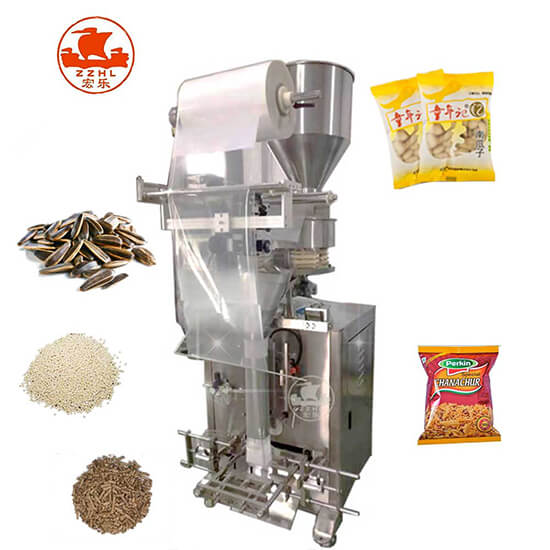

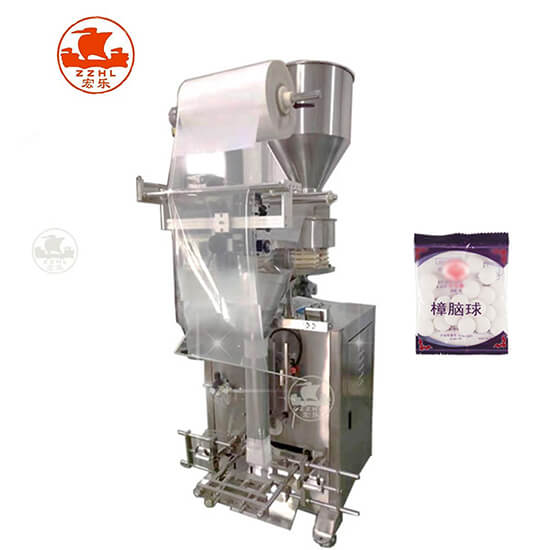

This machine is suitable for packing granular products with good fluidity. Such as: pharmaceutical granules, salt, monosodium glutamate, tea, desiccant, pesticide particles, solid drinks, seeds, etc.
Technical Features :
1. computer control, liquid crystal display, easy to operate, stable and reliable operation.
2. step motor control pull bag system, bag high precision.
3. stop the bag, and after the shutdown, the heat sealing device is automatically in the open state.
4. automatic tracking color code, automatic packaging bag positioning, fixed length.
5. variable screw ring to adjust the measurement for the hand lever type, the door lever and the support of the integration, the state of the machine can adjust the measurement. Operation more convenient, more secure.
Sealing mode : three side sealing(flat knife), four side sealing(flat knife).
| Model | HL-DXDK | HL-DXDK-350 |
| Packing Speed | 50 Bags/Min | 40 Bags/Min |
| Measuring Range | 1-50g | 100-500g |
| Filling way | Measuring cup | Measuring cup |
| Bag Length | 40-160mm | 80-250mm |
| Bag Width | 40-120mm | 60-150mm |
| Voltage | 1.1KW/220V | 2.3KW/220V |
| Packing type | 3 edge-sealing/43 edge-sealing/back sealing | back sealing |
| Motor | Stepper motor | Stepper motor |
| Size | 73*100*170cm | 100*95*180cm |
-
This machine is equipped with a dual-CPU microcomputer control system, a 5-inch LCD display in Chinese or English, a humanized operation interface, automatic cursor detection and tracking, and simpler operation. Equipped with a high-precision stepping motor to ensure the accuracy of the cutting position of each packaging bag.
280 350 Model Automatic Powder Packing Machine
-
PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
520 Type Automatic Powder Packing Machine
-
Applicable scope for packaging milk powder, sesame paste, strong bone powder, condiments, Ganoderma lucidum powder, granules and other items.
HL-GDF Full Automatic Powder Filling and Packing Machine
-
Suitable for quantitative filling of various bottles, cans and bags,Photoelectric induction blanking, or optional foot switch blanking,Feedback scale and indexing value can be adjusted to meet various accuracy requirements.
Semi-automatic Powder Packaging Machine
