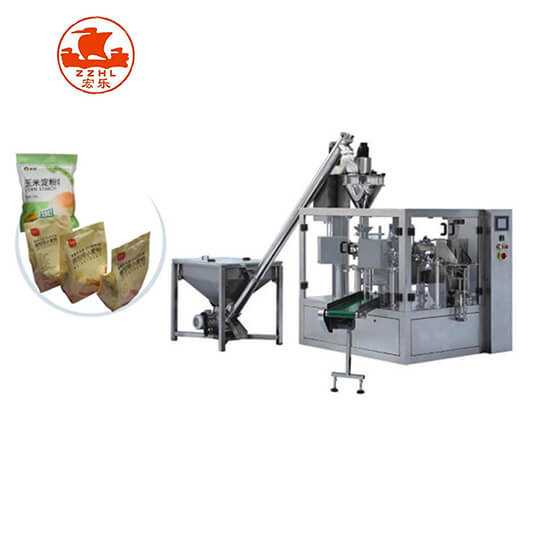

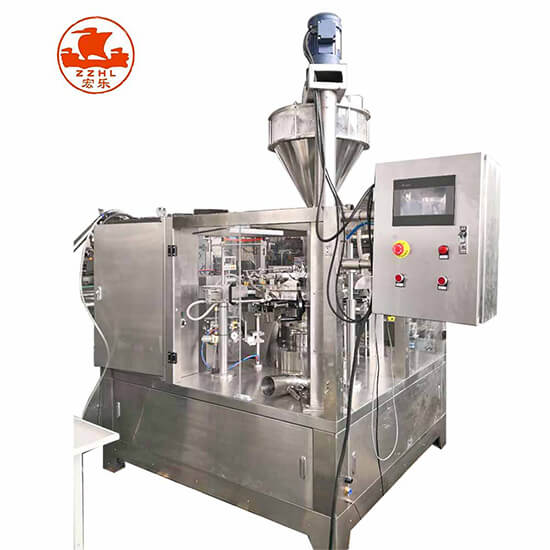

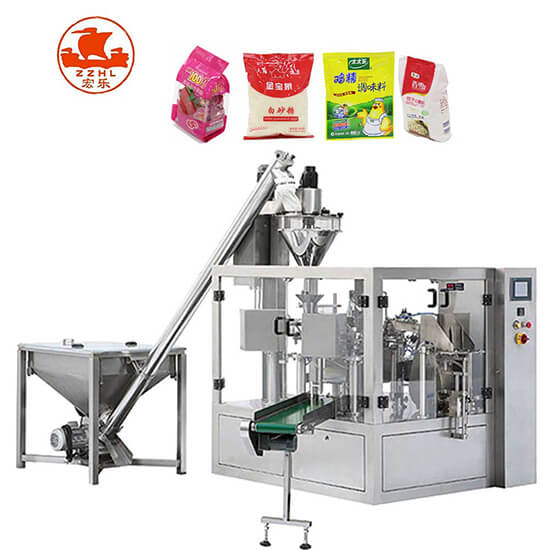

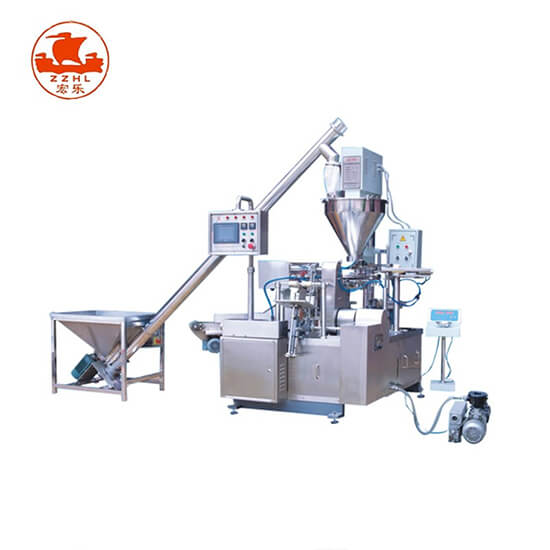

Applicable scope for packaging milk powder, sesame paste, strong bone powder, condiments, Ganoderma lucidum powder, granules and other items.
Performance and Characteristics :
1. Convenient operation, using German Siemens PLC control, with touch screen man-machine interface control system.
2. Frequency conversion speed regulation, this machine uses frequency conversion speed regulation device, the speed can be adjusted at will within the specified range
3. Automatic detection function, if the bag is not opened or the bag is incomplete, no feeding, no heat sealing, the bag can be reused, no waste of materials, saving production costs for users.
4. The size of the packaging bag is automatically adjusted, and the width of the packaging bag can be changed arbitrarily on the touch screen.
5. The machine adopts the function of parking brake, which plays a role of safety protection when it is stopped.
6. This machine adopts imported engineering plastic bearings, no need to add oil and no maintenance, reducing the pollution of materials.
7. Meet the sanitary standards of the food processing industry, and the parts in contact with the materials are made of stainless steel or materials that meet the food sanitation requirements.
8. Packaging bags have a wide range of applications. For multilayer composite films, single-layer PE, PP and other materials made of prefabricated bags and paper bags can be applied.
| Model number | HL-GDF-200 | HL-GDF-300A |
| Weighing range | 10-1500g | 100-2500 grams |
| Packaging speed | 10-50 bags/minute | 10-30 bags/minute |
| Machine weight | 1060 kg | 1280 kg |
| Total power | 1.5 kw | 2.0 kw |
| Dimensions | L1600×W1550×H1750mm | L2200×W1850×H1500mm |
| Packing bag material | Composite film, PE, PP, etc. | Composite film, PE, PP, etc. |
| Packing bag size | L: ≤350mm W: 100-210mm | L200-450mm W:200-300mm |
| Compressed gas consumption | 0.4 cubic/minute | 0.4 cubic/minute |
-
L type inline filling machine is a new and high technology filling equipment which consists of micro computer (PLC), programmable control, photoelectric sensing and pneumatic execution.

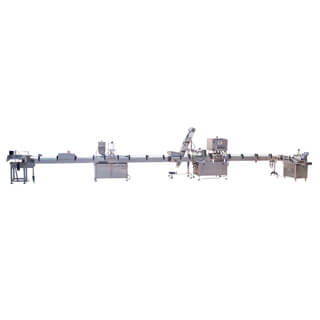

Full Automatic Liquid High Speed Filling Packing Machine Production Line
-
This type of paste filling machine adopts photoelectric automatic control system, unique piston filling form, which can not only continuous filling, but also free filling machine.

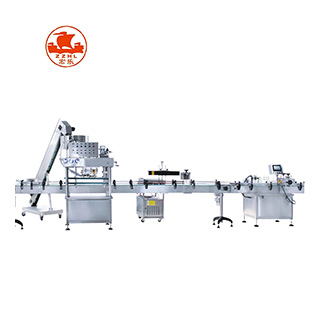

Chili Sauce Letinous Edodes Sauce Automatic Filling Packing Machine Production Line
-
Adopted piston quantitative, mechanical and electrical, pneumatic in one, electrical and pneumatic components used well-known brands.

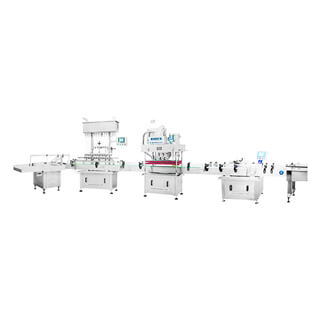

Fully Automatic Paste Liquid Filling Processing Line
-
This machine is the intelligent packaging for the development of granular materials and irregular materials. Using pneumatic gate feed or belt feeding mode, advanced frequency conversion technology.

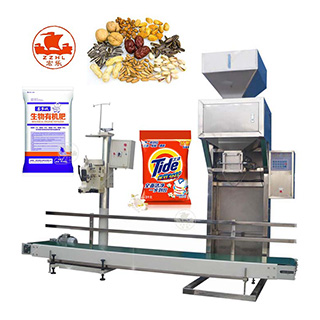

5-50KG Granule Filling Packing Machine
