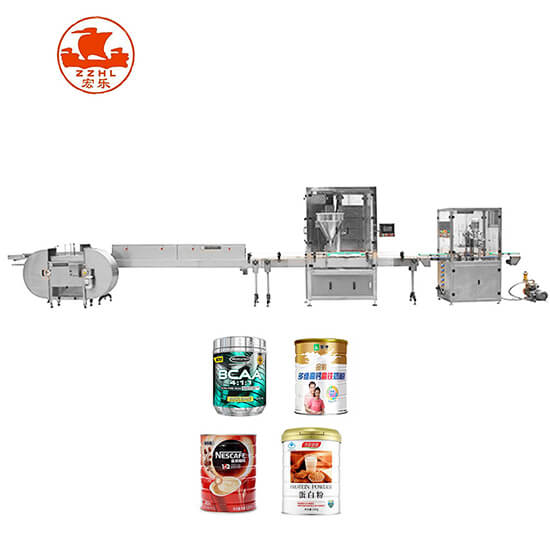

Hl-P-F Automatic Milk Powder, Protein Powder Canned Equipment Production Line

1. High-speed automatic canning line comprising: a processing tank unit → turn can, purged, double precision weighing → sterilization → vacuum sealing machine filling machine chain plate conveyor → printer → turn can control chain Plate conveyor belt → gland presses → packing platform.

2. The production line supporting the machine in addition to specify the material are stainless steel, all the machinery structure are selected in accordance with food hygiene standards.

3. The whole line of equipment according to GMP standard design, fully meet the national food hygiene requirements. The real line of the fully automated action to ensure that the entire production process will not contact the product staff, the production process is completely transparent and more reliable.

4. And the material in contact with the material inside the wall are polished, often wash the structure are easy to use split parts to ensure that shift or change the product when dealing with hygiene convenience.

5. The filling accuracy of the system can be controlled within ± 1 - 2g. According to the different requirements of vacuum nitrogen after the residual oxygen rate can be less than 3%, so that your product shelf life longer and more secure.

6. To the factory site survey, field design the best production program; free production line other aspects of technical support.

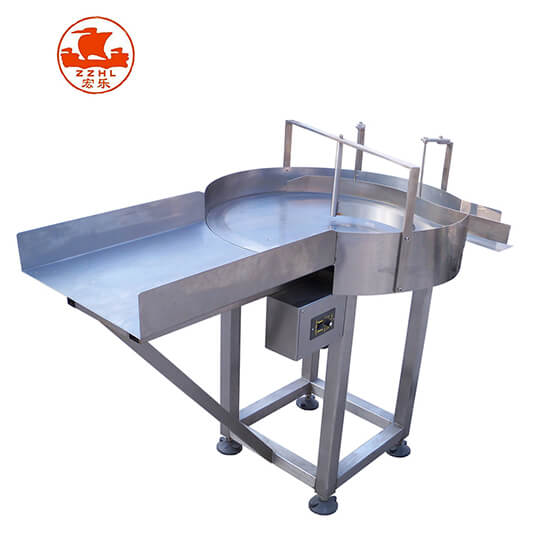

1. HL-J Rotary Feeder

The machine adopts frequency conversion speed regulation for rotary motion, so that the bottle or jar in the rotation tangential force under the order into the conveyor belt, and packaging production line matching, to save labor, improve the efficiency of the purpose of the scope of the container for the tinplate, glass , plastic bottles, polyester bottles.
The main parts of the machine made of high quality stainless steel, in line with GMP requirements.

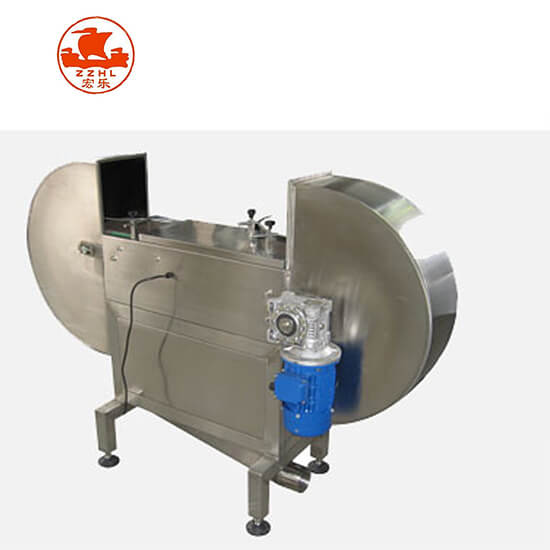

2. Turn can degaussing blowers

Parameter :

Features :
The use of advanced cans, purge and control technology to achieve the empty cans flip and purge function to ensure that no impurities in the tank; with a degausser, cans down, in the gas purge, the tank does not contain magnetic, to ensure that iron and other impurities can also be blown away;the air supply is generated by the machine's own blower
Appearance of stainless steel structure, drive shaft carbon steel plating.

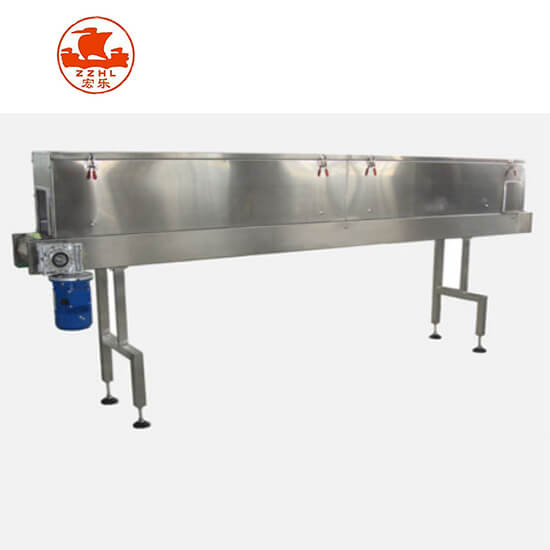

3. Empty tank sterilizer

Parameter :

Features :
The device is the preferred sterilization facility for the empty tank into the sterile workshop.
Appearance of stainless steel structure, drive shaft carbon steel plating.
The machine consists of two sections, each by two quartz glass ultraviolet germicidal lamp irradiation, are installed in the upper, from top to bottom irradiation, the upper part of the stainless steel cover can be easily removed, easy to maintain.

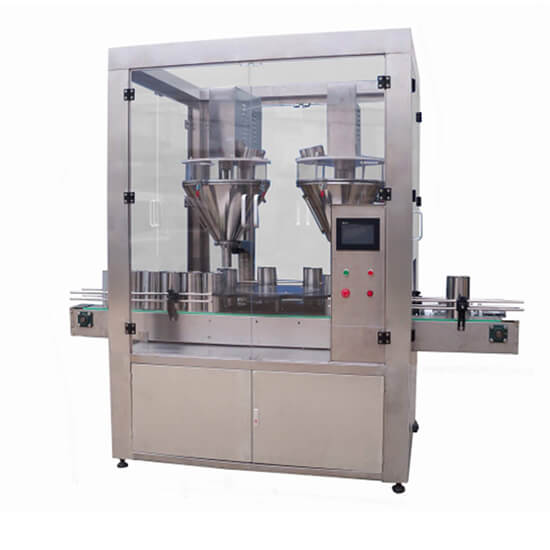

4. HL-FST high-precision weighing filling machine

This machine is suitable for all kinds of powder, ultra-fine powder or powder-like materials canned, canned, drums. Such as: milk powder, rice flour, protein powder, cocoa powder, powder drugs, chicken powder, chicken, additives, sugar, dyes, flavors and fragrances.

Features :
1. Whole machine made of stainless steel, especially for GMP certification, food hygiene certification.
2. Chinese and English LCD touch screen, simple operation, the weight of the packaging at any time adjustable, working status can also be changed at any time, easy to operate
3. Filled with servo motor, with high precision, fast speed, torque, adjustable speed, good stability and so on
4. Stirring with Taiwan production maintenance-free motor: low noise, long life, life-free maintenance
5. Online weighing feedback, automatically follow the proportion of material secondary filling, to ensure that the product of high precision, high-speed online filling.
6. Fully sealed air resistance glass stainless steel, material movement at a glance, the dust is not leaked, filling the outlet with a vacuum device to protect the workshop environment.
7. Side open open hopper, easy to clean without dead ends, easy to replace the spiral accessories.

Technical Parameters :

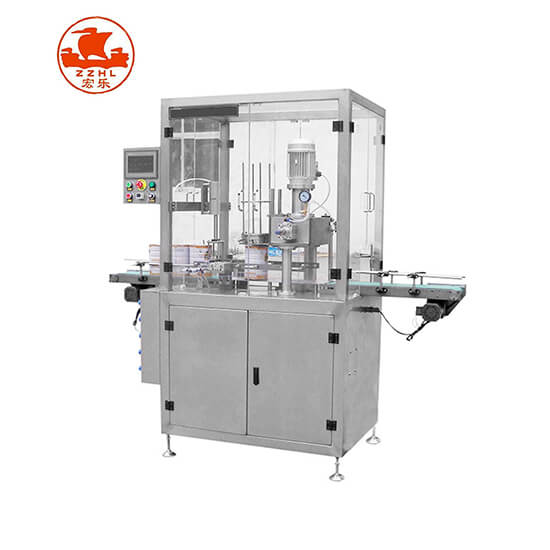

5. Automatic vacuum nitrogen filling machine

This machine is mainly for high clean requirements of milk powder, high protein powder packaging industry and the design of a new type of sealing machine. Automatic control of the use of electrical control, man-machine interface, to achieve automatic capping, automatic access to the tank, fully automatic vacuum nitrogen, no oil automatic sealing, working parameters can be based on different round tank sealing requirements on the touch screen easy to set and change

Technical Parameters :
